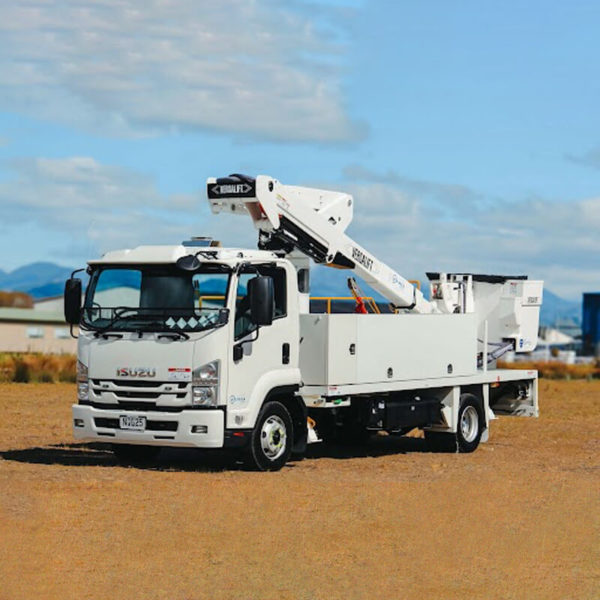

Versalift VST40 on Isuzu FRR500

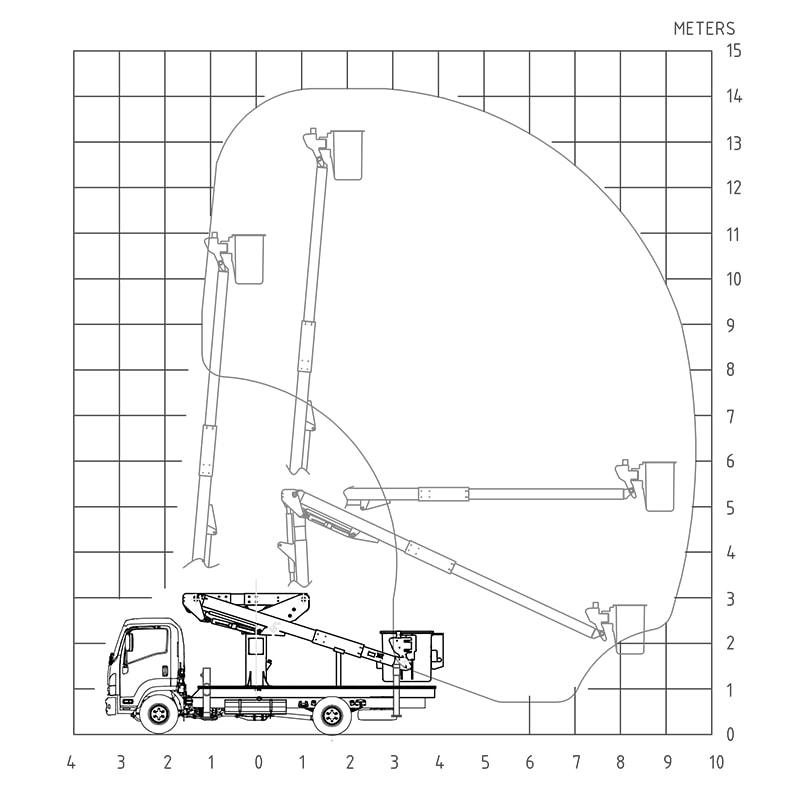

The Versalift VST40 EWP offers 14.2m work height, 9.5m horizontal reach and 227kg bucket capacity on a fully insulated 46kV, Cat C boom. It comes with four outriggers with interlock system, 600mm bucket lift and uni-lever control for multi-function with one hand.
EWP Specifications
| Manufacturer | Versalift |
| Model | VST 40 |
| Working height | 14.2m |
| Working radius | 9.5m |
| Insulation | C (46Kv) |
| Boom style | Articulating/Telescopic |
| Boom slew rotation | Continuous |
| Bucket rotation | Yes |
| Bucket capacity SWL | 227kg |
| Bucket dimension (LxWxH) | 1070x610x1100 |
| Control type | Hyd. |
| Bucket lift slide | 500mm |
| Wrap around bucket (swing Arm) | NA |
| Hydraulic tool port at bucket | Yes |
| Flyboom (°) | NA |
| Auto stow | NA |
| Auto outrigger levelling | NA |
| Jib (material handler) | NA |
| Lifting winch | NA |
Truck Specifications
| Make | Isuzu |
| Model | FRR500 |
| Specifications | 4×2 |
| HP | 205 |
| Transmisson | AMT Auto |
The Versalift VST40 EWP offers 14.2m work height, 9.5m horizontal reach and 227kg bucket capacity on a fully insulated 46kV, Cat C boom. It comes with four outriggers with interlock system, 600mm bucket lift and uni-lever control for multi-function with one hand.
The VST40 boom offers point and shoot functionality along with ability to go up and over obstacles. There's a hydraulic tool port at the bucket and the bucket can easily be tilted for cleaning and rescue.
The entire truck design is focused on highly efficient and safe use of the boom, with easy deck access and safety handrails all the way up to the bucket.
Build options include sign and cone holders, slide-out vice and a range for toolboxes to choose from.
The Isuzu FRR500 with a automatic transmission and 4410 wheelbase provides a tight turning circle for a nimble unit around town, and a pleasure to drive on the open road.
