Waimea 140P on Ranger

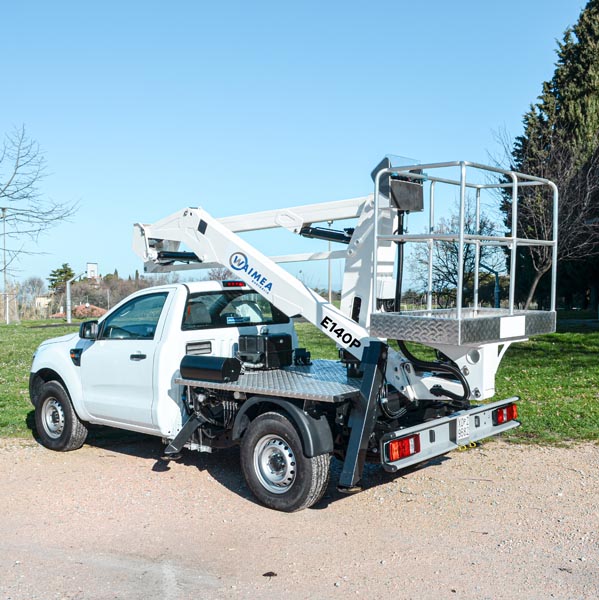

The Waimea E140P is a versatile 13.2 m telescopic articulated truck mounted machine. Known for its known for exceptional strength and rigidity and its simple and intuitive controls.
EWP Specifications
| Manufacturer | GSR |
| Model | E140P |
| Working height | 13.2m |
| Working radius | 6.0m |
| Insulation | No |
| Boom style | Articulating/Telescopic |
| Boom slew rotation | |
| Bucket rotation | No |
| Bucket capacity SWL | 250kg |
| Bucket dimension (LxWxH) | |
| Control type | |
| Bucket lift slide | No |
| Wrap around bucket (swing Arm) | No |
| Hydraulic tool port at bucket | No |
| Flyboom (°) | No |
| Auto stow | No |
| Auto outrigger levelling | O |
| Jib (material handler) | No |
| Lifting winch | No |
Truck Specifications
| Make | Ford |
| Model | Ranger |
| Specifications | 4×2 |
| HP | 157 |
| Transmisson | AMT Auto |
The Waimea E140P is a versatile 13.2 m telescopic articulated truck mounted machine. Known for its known for exceptional strength and rigidity and its simple and intuitive controls.
The Waimea E140P truck mounted lift is built to accommodate 2 persons and tools with a maximum rate capacity of 250 kg.
It is also equipped with precise electrohydraulic controls—enabling for a very smooth operation and accuracy even at full height and outreach.

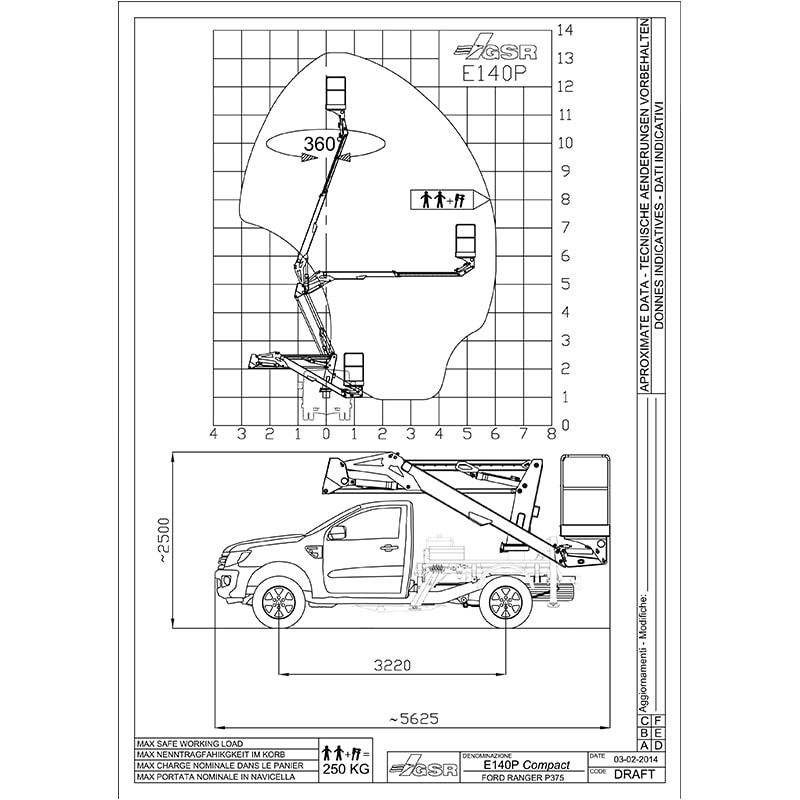

The Waimea E140P also has a lateral outreach of 6 m fully loaded, and auto basket leveling. Its extremely compact dimensions only measures 5.61 m in length, 1.87 m in width, and 3.0 m in stowed height.
