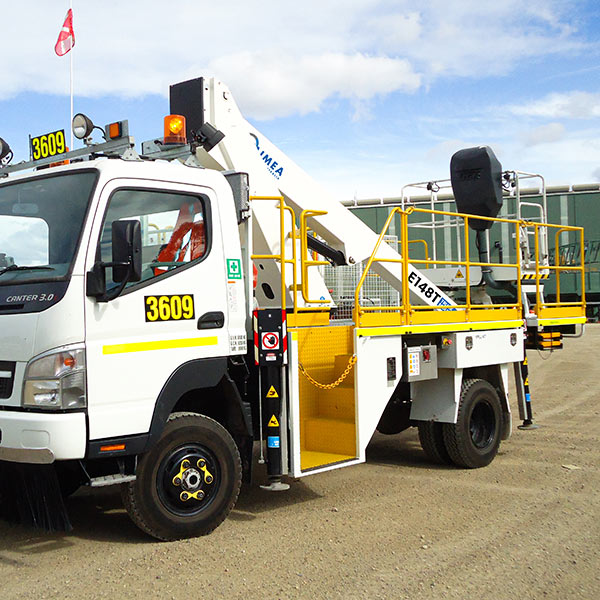

Waimea 148T on Hino 817 4×4
The Waimea E148T is a simple, strong and reliable telescopic truck mounted cherry picker. A very versatile package for heavy duty applications.
EWP Specifications
| Manufacturer | GSR |
| Model | E148T |
| Working height | 13.7m |
| Working radius | 8.4m |
| Insulation | No |
| Boom style | Telescopic |
| Boom slew rotation | 450° |
| Bucket rotation | 140° |
| Bucket capacity SWL | 250kg |
| Bucket dimension (LxWxH) | |
| Control type | Hyd. |
| Bucket lift slide | No |
| Wrap around bucket (swing Arm) | No |
| Hydraulic tool port at bucket | No |
| Flyboom (°) | No |
| Auto stow | No |
| Auto outrigger levelling | O |
| Jib (material handler) | No |
| Lifting winch | No |
Truck Specifications
| Make | Hino |
| Model | 817 |
| Specifications | 4×4 |
| HP | 170 |
| Transmisson | Man |
The Waimea E148T is a simple, strong and reliable telescopic truck mounted cherry picker. A very versatile package for heavy duty applications.
It is equipped with exceptional strength and rigidity in the aerial platform as well as simple and intuitive operation.

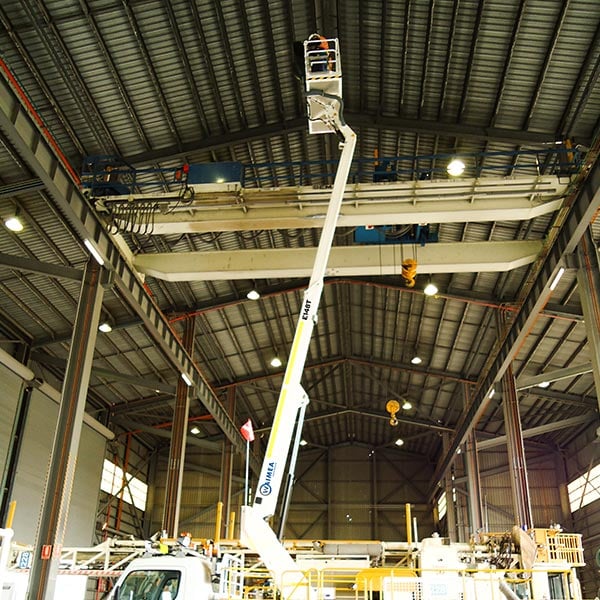

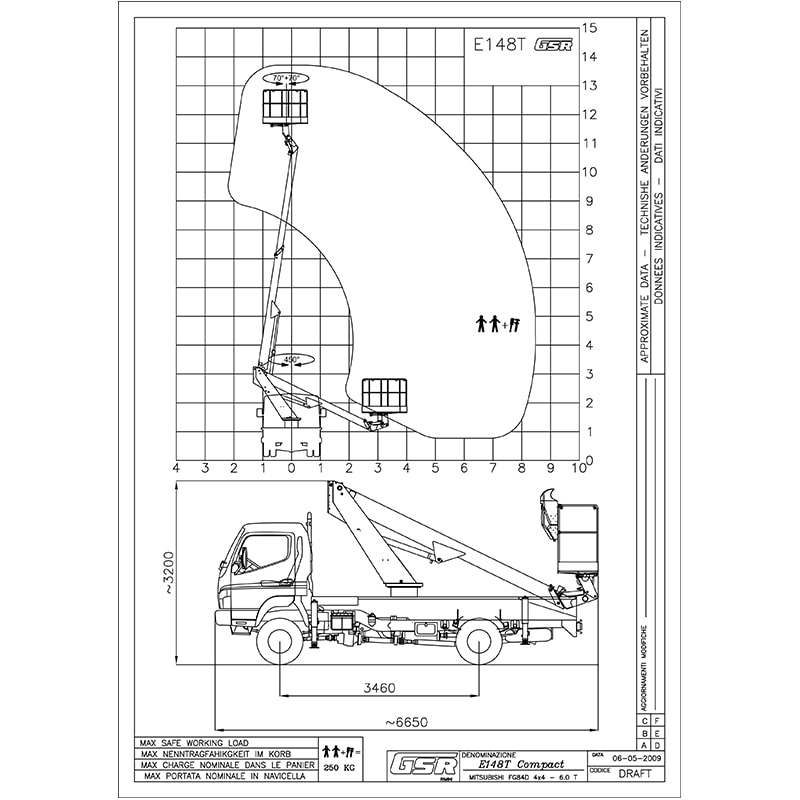

This telescopic truck mounted boom lift weighs from 4490 kg GVM, has a 13.7 m vertical reach, and 8.4 m horizontal reach.
The Waimea E148T truck mounted lift is extremely rigorous, and safe to accommodate 2 persons and tools with a maximum rated capacity of 250 kg.
It is also equipped with hydraulic control levers that are robust and durable, allowing smooth full range operation—even at maximum outreach.
The Waimea E148T’s outrigger legs can be operated individually using the hydraulic controls for simple leveling on uneven surfaces. The legs are vertical, and remain within the width of the truck when set up.
