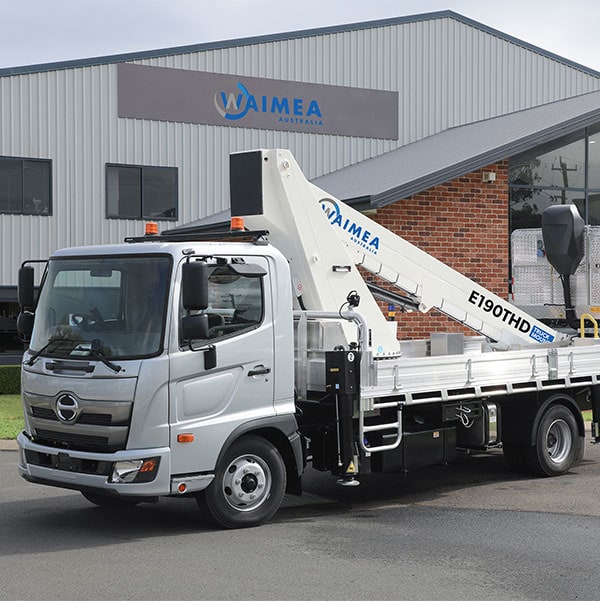

Waimea 190THD on HINO FC112 4×2
The Waimea E190THD truck mounted lift is a 19 m truck mounted machine. It is known for its exceptional strength and rigidity, combined with its simple and intuitive operation.
EWP Specifications
| Manufacturer | GSR |
| Model | E190THD |
| Working height | 18.52m |
| Working radius | 13.2m |
| Insulation | No |
| Boom style | Telescopic |
| Boom slew rotation | 450° |
| Bucket rotation | 140° |
| Bucket capacity SWL | 220kg |
| Bucket dimension (LxWxH) | |
| Control type | Hyd. |
| Bucket lift slide | No |
| Wrap around bucket (swing Arm) | No |
| Hydraulic tool port at bucket | No |
| Flyboom (°) | No |
| Auto stow | No |
| Auto outrigger levelling | O |
| Jib (material handler) | No |
| Lifting winch | No |
Truck Specifications
| Make | Hino |
| Model | FC1124 |
| Specifications | 4×2 |
| HP | 240 |
| Transmisson | AMT Auto |
The Waimea E190THD truck mounted lift is a 19 m truck mounted machine. It is known for its exceptional strength and rigidity, combined with its simple and intuitive operation.
The Waimea E190THD truck mounted lift is built to accommodate 2 persons and tools with a maximum rated capacity of 220 kg.

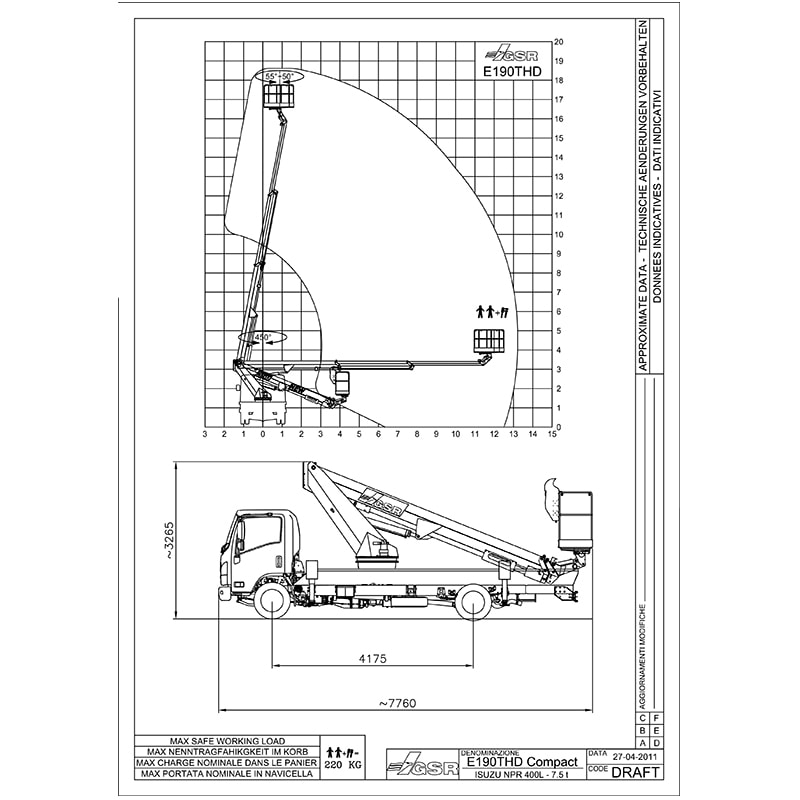

Even though the Waimea E190THD only weighs 8.5 t, it can still manage 18.52 m of working height, 16.52 m of platform height, and 13.20 m of horizontal reach.
It features internal protected hoses with self-cleaning brushes on the telescopic sections to prevent ingress of dirt and other debris, and is particularly suited to heavy duty applications with its all-steel and strong profile design.
