Waimea 209PX on FUSO 515 4X2

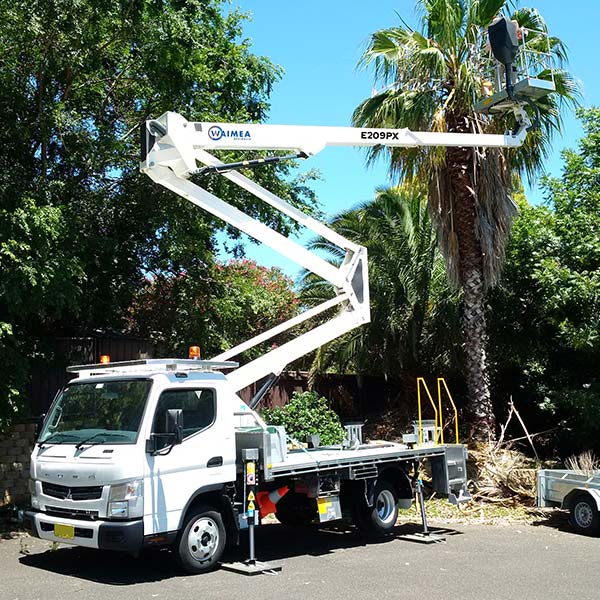

The Waimea E209PX is a super compact 20 m truck mounted cherry picker. A very versatile package for heavy duty applications. The modern double knuckle technology also provides a very compact machine without the problems of “tail swing” associated with conventional single-knuckle boom lifts.
EWP Specifications
| Manufacturer | GSR |
| Model | E209PX |

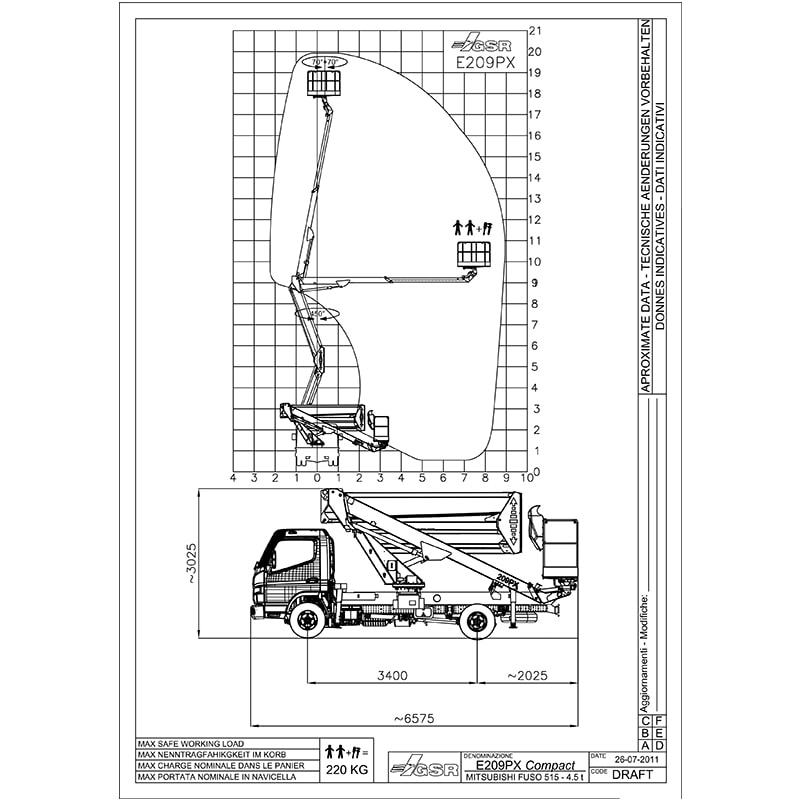

| Working height | 19.9m |
| Working radius | 8.49m |
| Insulation | No |
| Boom style | Articulating/Telescopic |
| Boom slew rotation | 450° |
| Bucket rotation | 140° |
| Bucket capacity SWL | 220kg |
| Bucket dimension (LxWxH) | |
| Control type | Hyd. |
| Bucket lift slide | No |
| Wrap around bucket (swing Arm) | No |
| Hydraulic tool port at bucket | No |
| Flyboom (°) | No |
| Auto stow | No |
| Auto outrigger levelling | O |
| Jib (material handler) | No |
| Lifting winch | No |
Truck Specifications
| Make | Fuso |
| Model | 515 |
| Specifications | 4×2 |
| HP | 150 |
| Transmisson | AMT Auto |
The Waimea E209PX is a super compact 20 m truck mounted cherry picker. A very versatile package for heavy duty applications. The modern double knuckle technology also provides a very compact machine without the problems of “tail swing” associated with conventional single-knuckle boom lifts.
This double articulated cherry picker, developed by GSR, weighs from 4490 kg GVM, has a 20 m working height, and 9 m horizontal reach.
The Waimea E209PX truck mounted lift is extremely rigid, and safe to accommodate 2 persons and tools with a maximum rated capacity of 220 kg.
It is also equipped with proportional hydraulic controls for very smooth operation. The heavy-duty hydraulic proportional multifunctional joysticks are housed within a fully protected area and provide the operator with exceptional smoothness and accuracy even at full height and outreach. Hoses and cables are placed within the booms, with internal tracking which is protected from debris by a set of self-cleaning brushes placed at each of the telescopic sections.
