Waimea 250PXJ on HINO FC1124 4X2
The Waimea E250PXJ truck mounted lift is a versatile 25 m telescopic truck mounted machine. An agile unit with great outreach.
EWP Specifications
| Manufacturer | GSR |
| Model | E250PXJ |

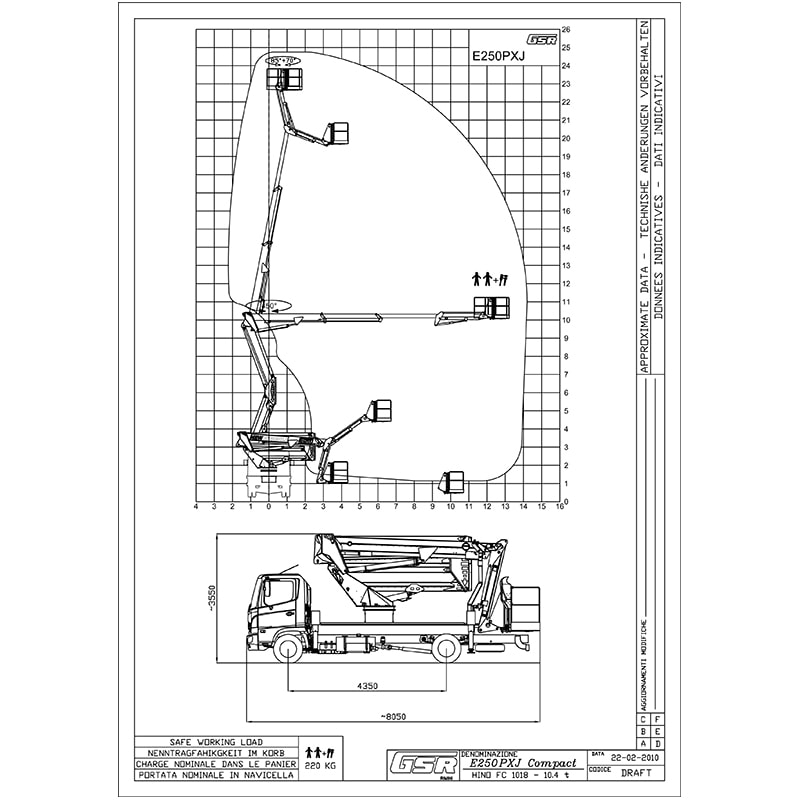

| Working height | 24.8m |
| Working radius | 14.0m |
| Insulation | No |
| Boom style | Articulating/Telescopic/Jib |
| Boom slew rotation | 450° |
| Bucket rotation | 155° |
| Bucket capacity SWL | 220kg |
| Bucket dimension (LxWxH) | |
| Control type | Hyd. |
| Bucket lift slide | No |
| Wrap around bucket (swing Arm) | No |
| Hydraulic tool port at bucket | No |
| Flyboom (°) | |
| Auto stow | No |
| Auto outrigger levelling | O |
| Jib (material handler) | No |
| Lifting winch | No |
Truck Specifications
| Make | Hino |
| Model | FC1124 |
| Specifications | 4×2 |
| HP | 240 |
| Transmisson | AMT Auto |
The Waimea E250PXJ truck mounted lift is a versatile 25 m telescopic truck mounted machine. An agile unit with great outreach.
The Waimea E250PXJ truck mounted lift is built to accommodate 2 or 3 persons and tools with a maximum rate capacity of 220 kg.
With a compact weight of 10 t, The Waimea E250PXJ can still manage 24.8 m of working height and 14.0 m of horizontal outreach.
