Waimea 290PX on HINO FD1124 4×2

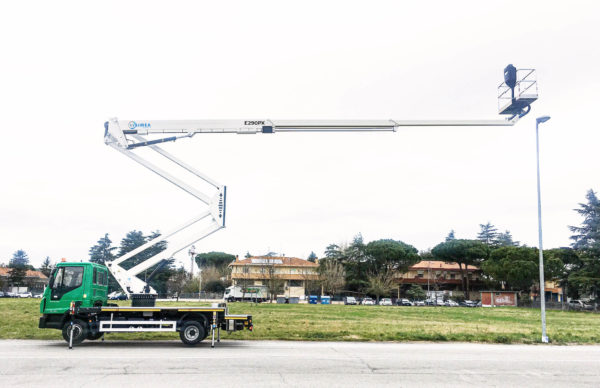

The Waimea E290PX is a versatile 28.7 m telescopic truck mounted machine. An agile unit with amazing outreach!
EWP Specifications
Manufacturer | GSR |
Model | E290PX |
Working height | 28.7m |
Working radius | 15.6m |
Insulation | No |
Boom style | Articulating/Telescopic |
Boom slew rotation | 450° |
Bucket rotation | 105° |
Bucket capacity SWL | 250kg |
Bucket dimension (LxWxH) | |
Control type | Hyd. |
Bucket lift slide | No |
Wrap around bucket (swing Arm) | No |
Hydraulic tool port at bucket | No |
Flyboom (°) | No |
Auto stow | No |
Auto outrigger levelling | O |
Jib (material handler) | No |
Lifting winch | No |
Truck Specifications
Make | Hino |
Model | FD1124 |
Specifications | 4×2 |
HP | 240 |
Transmisson | Man |
The Waimea E290PX is a versatile 28.7 m telescopic truck mounted machine. An agile unit with amazing outreach!
The Waimea E290PX truck mounted lift is built to accommodate 2 persons and tools with a maximum rated capacity of 250 kg.
It is also equipped with hydraulic controls for lift and stabilisation functions, providing for a very smooth operation and accuracy even at full height and outreach.
The Waimea E290PX is great for applications where frequent set-ups are needed, in restricted locations with higher reach requirements.
