Insulated EWPs: 7 Features Every Level 2 ASP Should Prioritise

For Accredited Service Providers (ASPs) and telecommunications contractors in Australia, your job site is rarely an open construction zone. You could be performing Level 2 service connections, NBN rollouts, or street-lighting maintenance, which means you’ll often be navigating tight spaces. Working in narrow streets, driveways, and busy urban infrastructure, your specialist vehicle needs to be a mobile workshop. It should be helping you get the job done efficiently and safely; otherwise, it’s costing you money.

The features that matter most for Level 2 ASP workers in Australia are: zero tail swing for tight streets, a no-outrigger footprint, payload that’s been optimised against GVM, auto boom stow to cut down on operator error, a chassis that stays within car-licence weight limits, insulation rated to AS1418.10, and tool storage built into the vehicle from the start. The Linelift® 105AU Fuso 515 is built around all seven.

Let’s break down these top 7 features every Level 2 ASP should prioritise when selecting or building their next EWP:

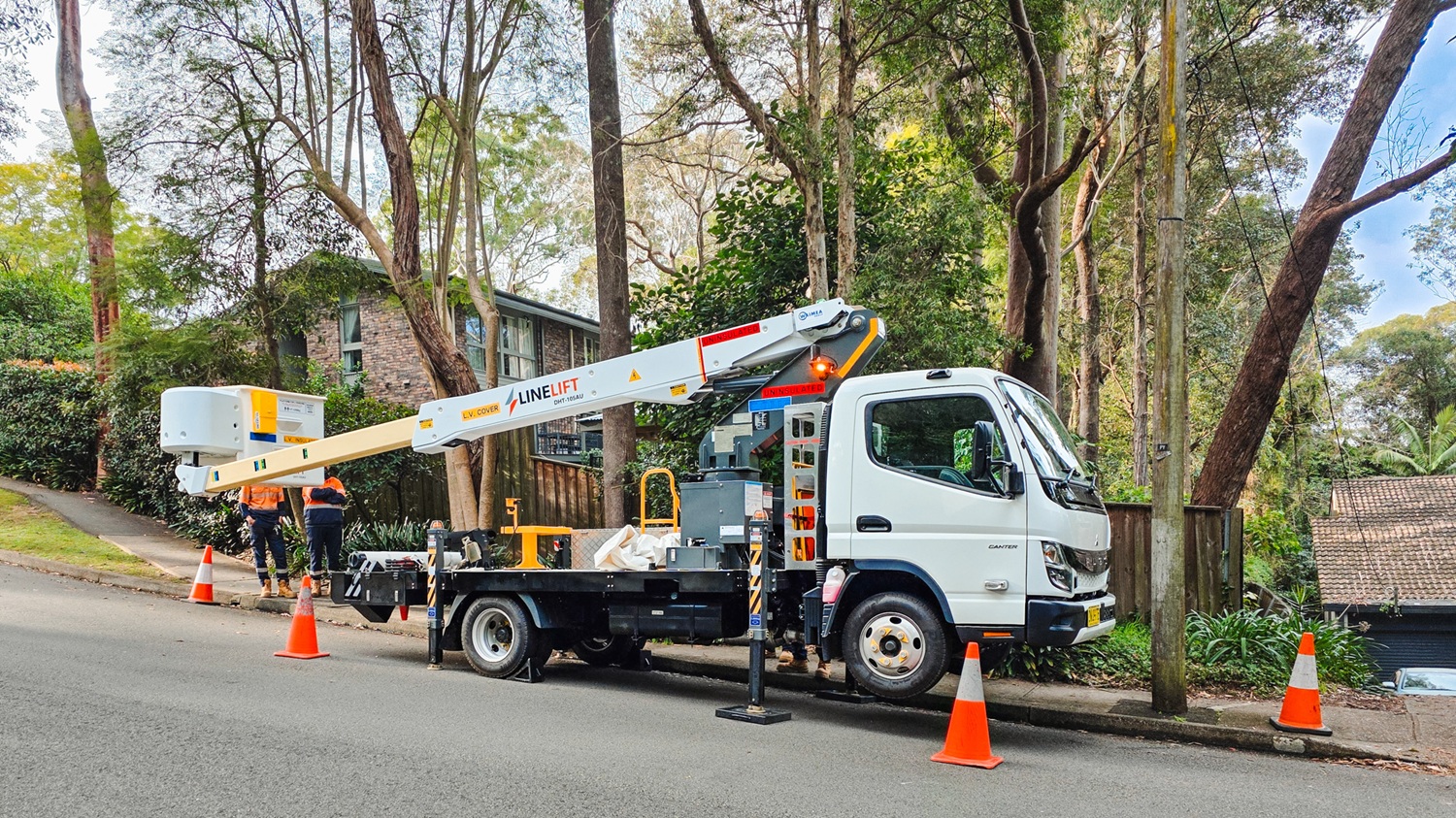

1. Tight Urban Navigation and Zero Tail Swing

Suburban streets don’t give you much room to work with. A boom that swings out wide as it rotates can catch a parked car, a fence line or a bystander, which increases the clearance you need near traffic and limits where your EWP can go.

To get around this, look for a straight telescopic boom with zero tail swing, so nothing hangs past the truck’s own footprint when it rotates. On the Linelift® 105AU, the boom control is also programmed to avoid the truck body and handrails automatically, which takes some of the guesswork out of positioning while the operator is focused on the job above.

​

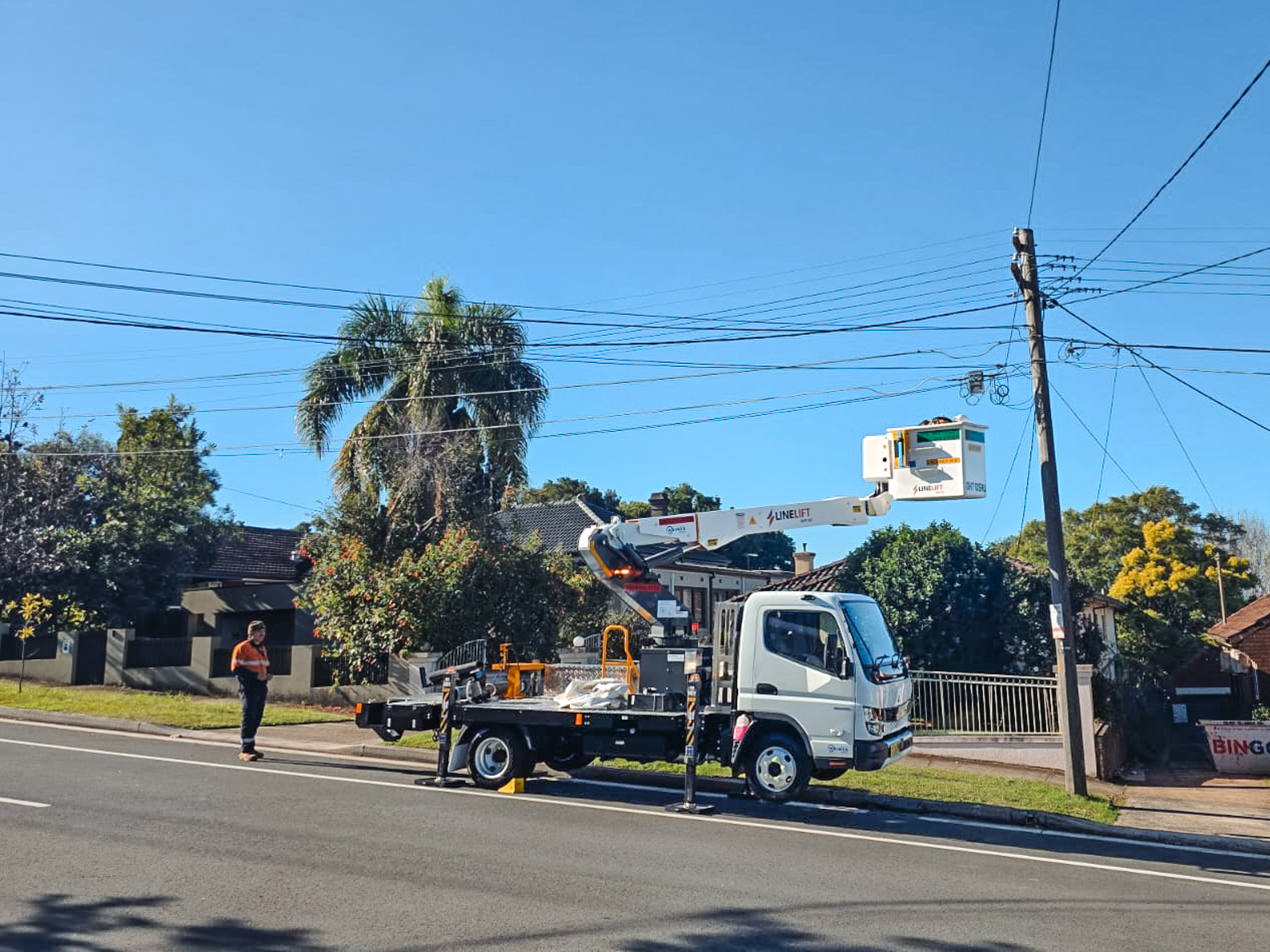

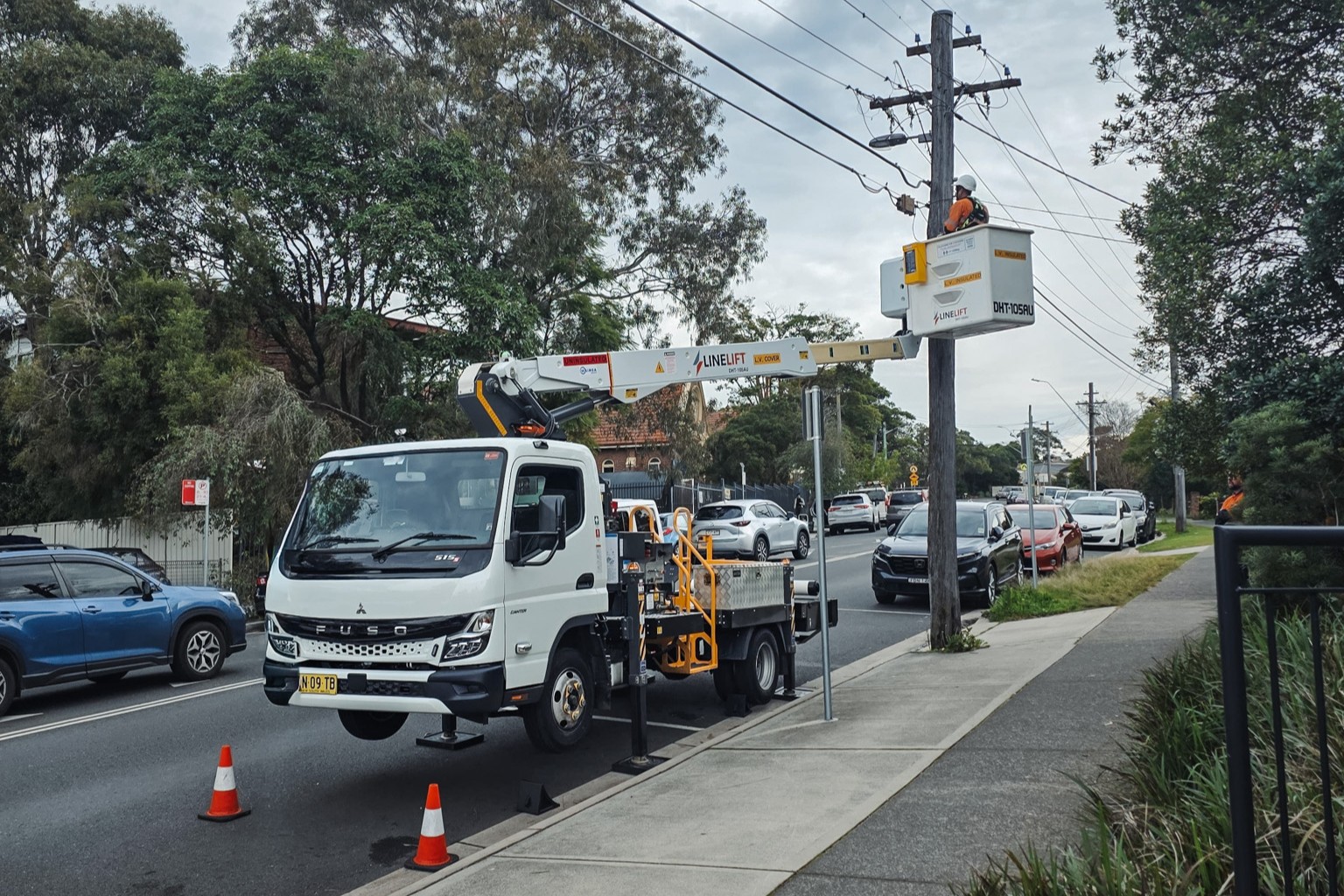

2. Compact Footprint and Downwards Outrigger Setup

Older-style H-type outriggers extend outwards on either side of the truck. That can mean closing a lane or blocking a driveway before you’ve even deployed your boom, which causes all the space restrictions and traffic management costs you didn’t budget for.

Straight-down outriggers do exactly what the name says: drop straight down and let the truck set up within its own footprint. Getting to work like this without holding up the whole street is one of the biggest benefits to the Linelift® 105AU.

3. Payload and GVM Optimisation

To keep licensing simple, a lot of Level 2 trucks sit in the 4.5 to 6.5 tonne GVM bracket. The problem is that once you’ve added a boom, bucket, outriggers and a full tool inventory, it’s easy to tip over the legal limit and end up having to leave gear behind.

This is where the chassis and boom need to be engineered as one unit rather than fitted together after the fact. On the Linelift® 105AU, the Fuso 515’s tare weight is on the lighter side for its class, which leaves more of the GVM free for the boom, bucket and payload. Side note: it’s worth checking with your supplier what the as-built GVM actually comes in at, since the final fit-out of tools and accessories will shift that number.

4. Damage Prevention With Auto Stow

When it’s the end of a long shift at the end of a long day, it’s easy to make mistakes when you’re manually stowing a boom. Concentration slips are all too common.

A single-touch auto boom stow, run through a programmable logic controller with position sensors managing the sequence, takes that risk out of the operator’s hands. It’s a standard feature on the Linelift® 105AU, and it also gets the crew off the job and back on the road faster.

5. Licensing To Fit Your Crew

Licensing is something that gets overlooked more often than it should in fleet planning. A lot of trucks need a Light Rigid licence or higher, and that shrinks the pool of staff who can legally drive it and adds training costs on top.

The Fuso Canter 515 has a base GVM of 4,495kg, which keeps it within reach of a standard passenger car licence. That means any trained technician can get behind the wheel without a heavy vehicle licence, which makes it that much easier when you’re rostering crews across several jobs in a day. As with point 3, the final build weight decides this, so it’s worth confirming with your supplier that the finished vehicle still sits under the threshold you need.

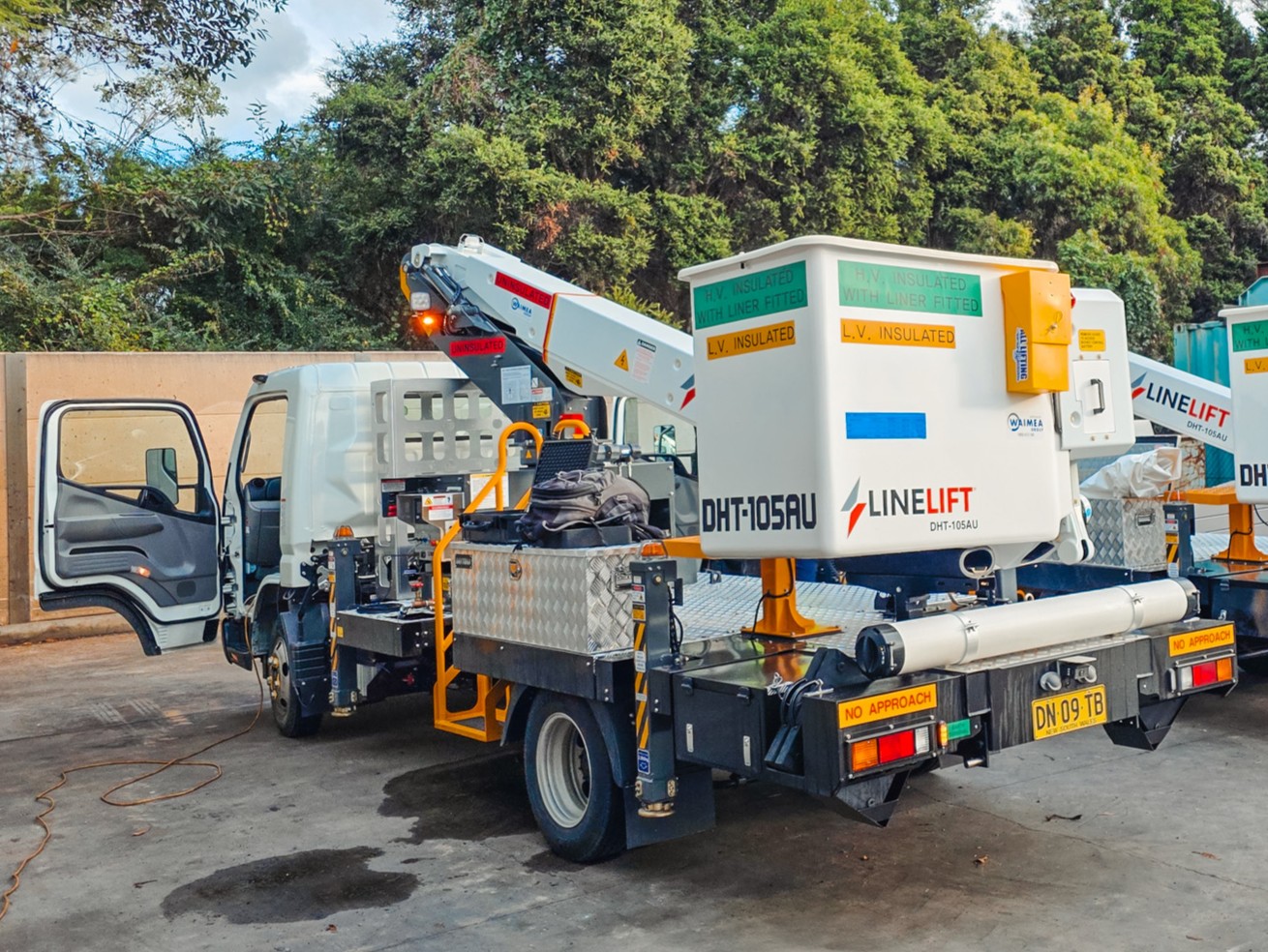

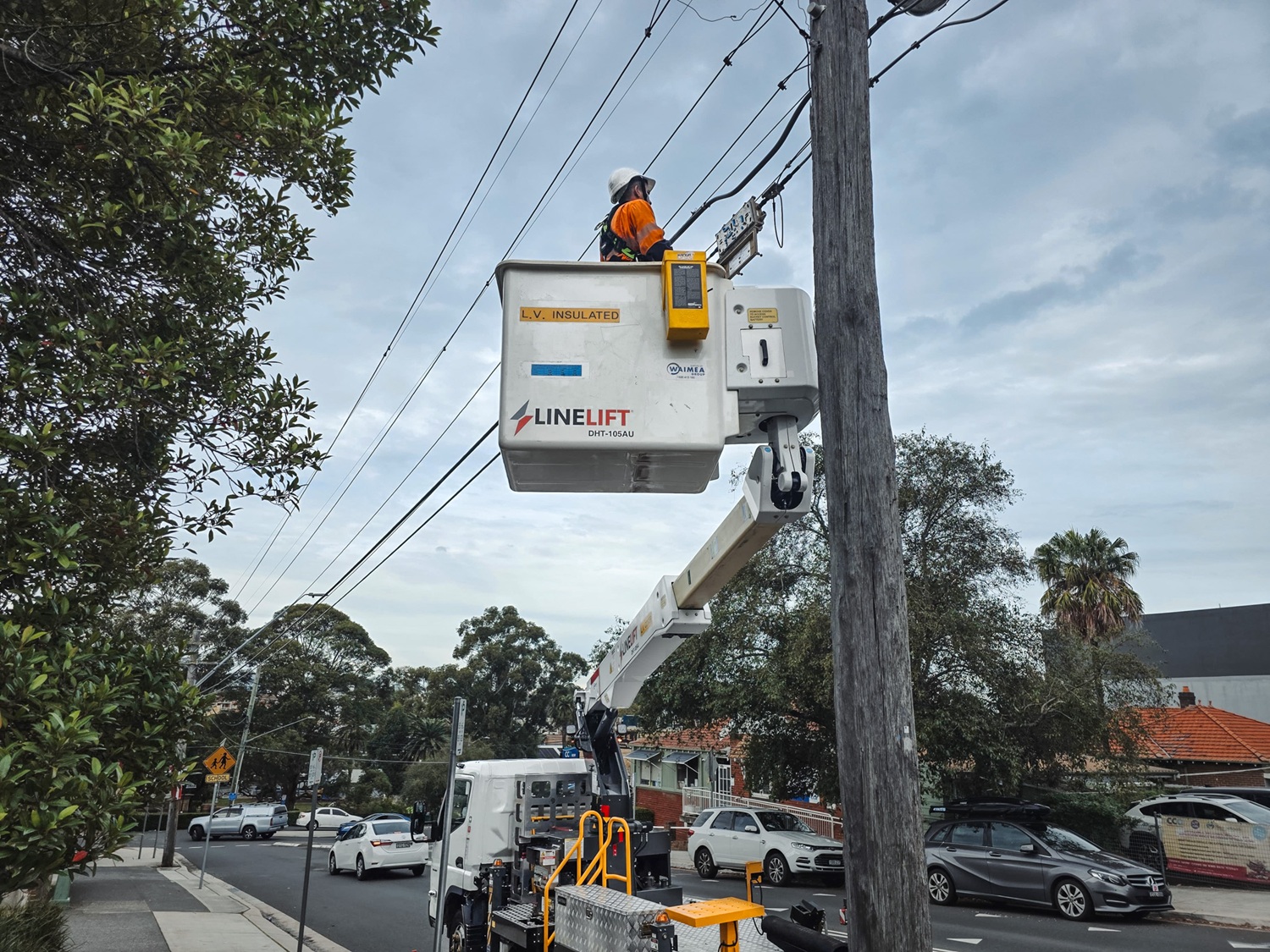

6. High-Level Insulation to AS1418.10

For proximity work near live conductors, insulation is the entire point of the vehicle, and it can’t be viewed as an added extra. The boom needs a genuine rating to AS1418.10, the Australian standard for insulated aerial devices.

The Linelift® 105AU’s fibreglass telescopic boom is built to this standard, and like any insulated EWP, it should sit on a documented periodic dielectric test schedule to keep that rating valid over its working life.

7. Integrated Tool Storage

Level 2 work comes with its own kit: meters, service fuses, cable cutters, test equipment, and so on. When you need any one of these tools, as you will on every job, searching a disorganised truck costs you time.

On the Linelift® 105AU, a hydraulic tool port at the bucket lets powered tools run straight off the boom, so you’re not setting up a separate compressor or generator at height. Beyond that, tool storage works best when it’s planned into the layout of the truck from the start rather than added on afterwards.

Level 2 ASP Equipment Checklist

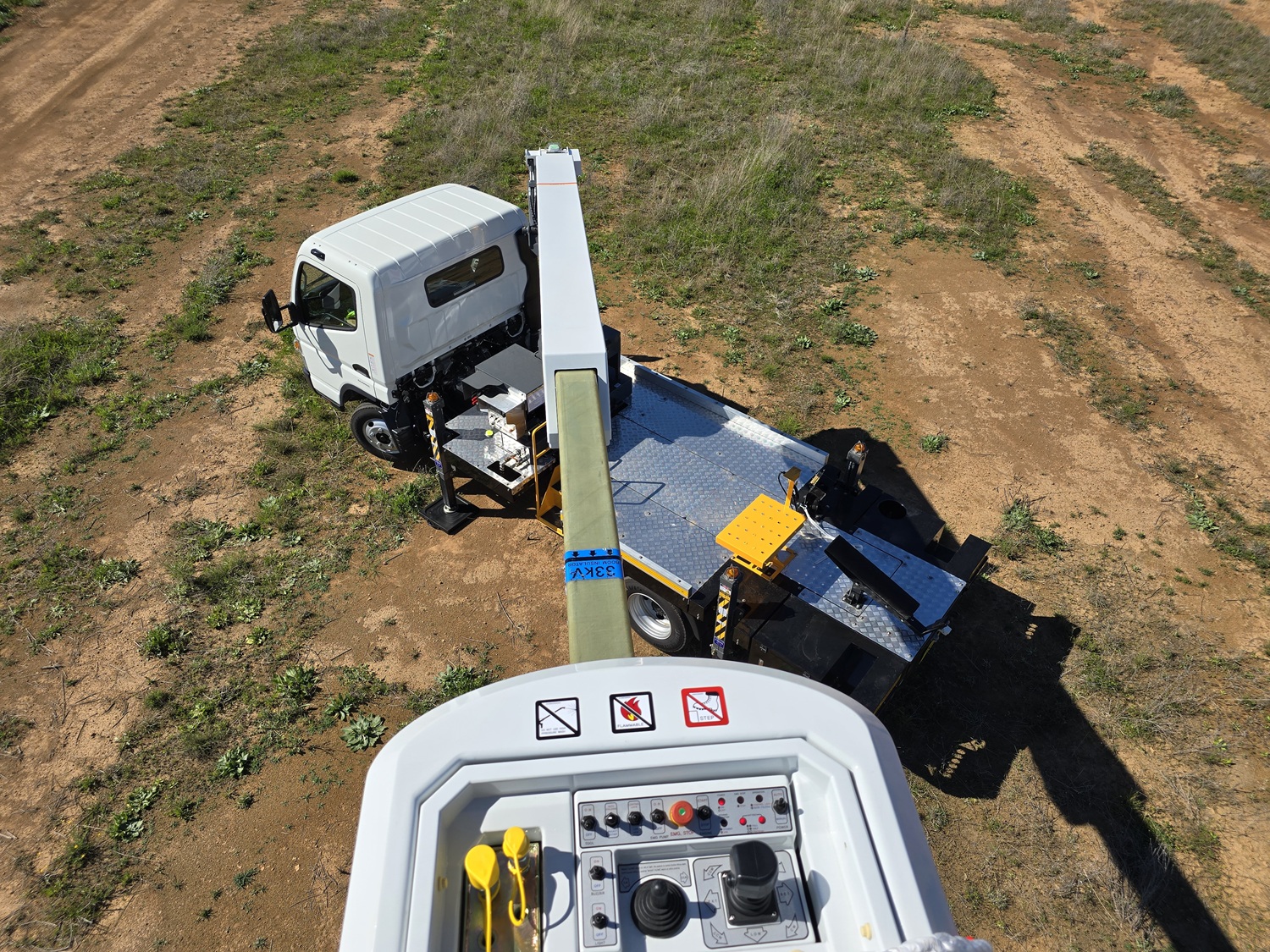

About the Linelift® 105AU Fuso 515

• Working height: 12.8m (10.8m to bucket floor)
• Horizontal outreach: 7.4m
• Bucket SWL: 200kg, 200° rotation
• Boom style: Insulated telescopic, 360° non-continuous slew
• Chassis: Fuso 515, 4×2, AMT automatic
• Control: Electric/hydraulic, with hydraulic tool port at bucket

Ready to Upgrade Your Fleet?

If your current EWP is costing you time on setup, licensing or compliance, it’s worth putting it side by side with a purpose-built Level 2 unit. Waimea AU offers the Linelift® 105AU Fuso 515 for dry hire, lease or purchase.

Get in touch with the Waimea Australia team to talk through your next build, or view full specifications for the Linelift® 105AU Fuso 515.
