GSR 290PX HINO FG1628 4×2 TK

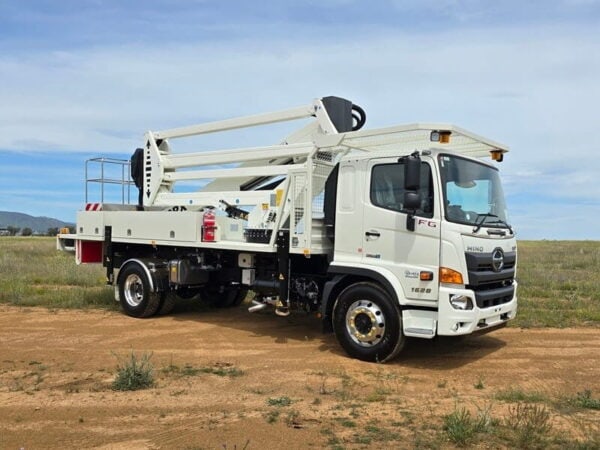

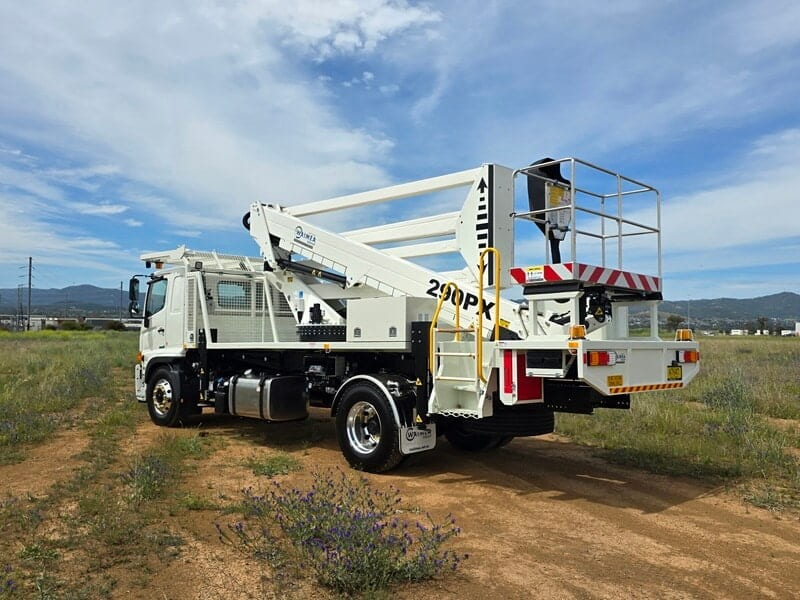

The Waimea E290PX is a versatile 28.7 m telescopic truck mounted machine. An agile unit with amazing outreach!
EWP Specifications
| Manufacturer | GSR |
| Model | E290PX |

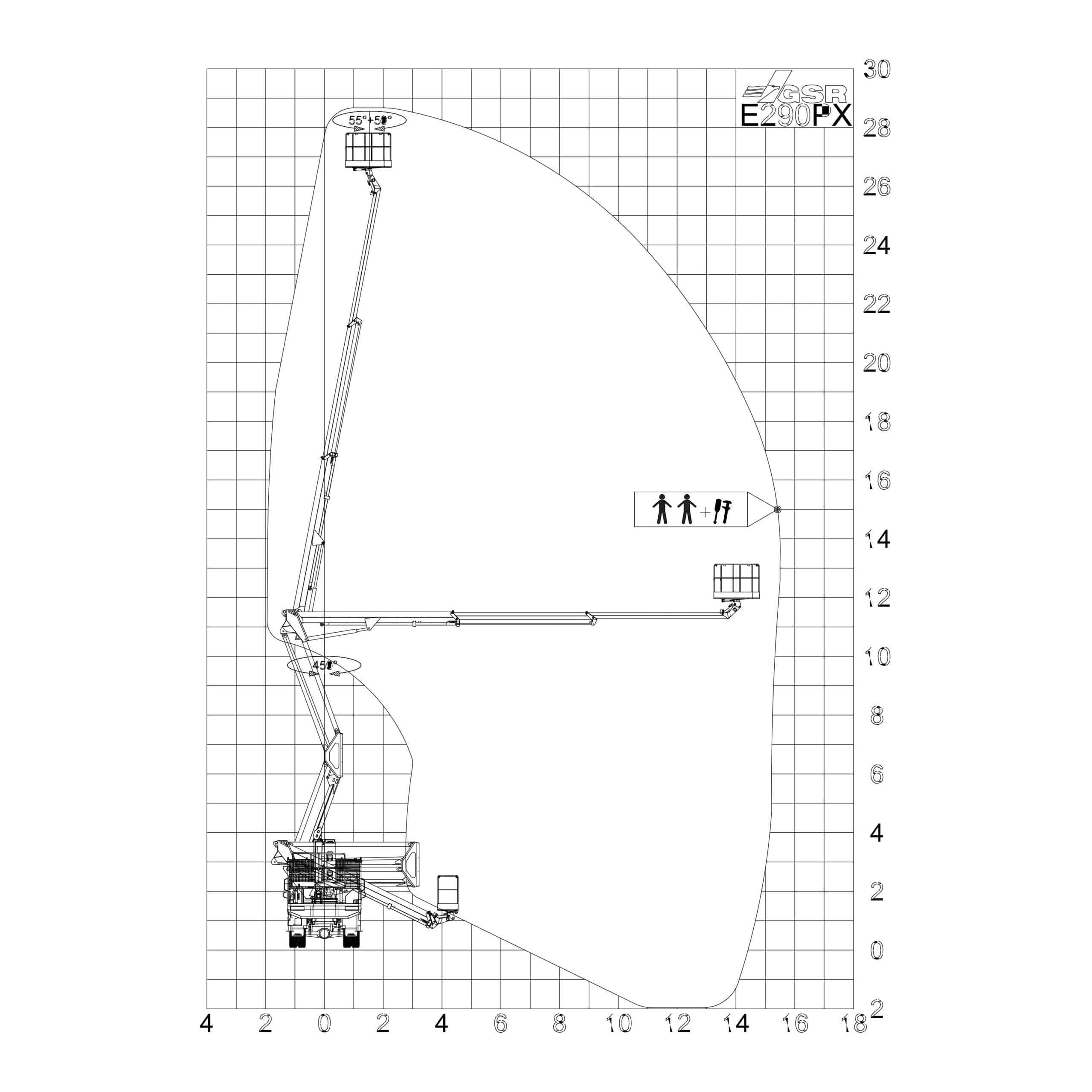

| Working height | 28.7m |
| Working radius | 15.6m |
| Insulation | No |
| Boom style | Articulating/Telescopic |
| Boom slew rotation | 450° |
| Bucket rotation | 105° |
| Bucket capacity SWL | 250kg |
| Control type | Hyd. |
Truck Specifications
| Make | Hino |
| Model | FG1628 |
| Specifications | 4×2 |
| HP | 240 |
| Transmission | AMT Auto |
| Difflocker/ Traction | S |
The Waimea E290PX is a versatile 28.7 m telescopic truck mounted machine. An agile unit with amazing outreach!
The Waimea E290PX truck mounted lift is built to accommodate 2 persons and toolswith a maximum rated capacity of 250 kg.
It is also equipped with hydraulic controls for lift and stabilisation functions, providing for a very smooth operation and accuracy even at full height and outreach.
The Waimea E290PX is great for applications where frequent set-ups are needed, in restricted locations with higher reach requirements.
