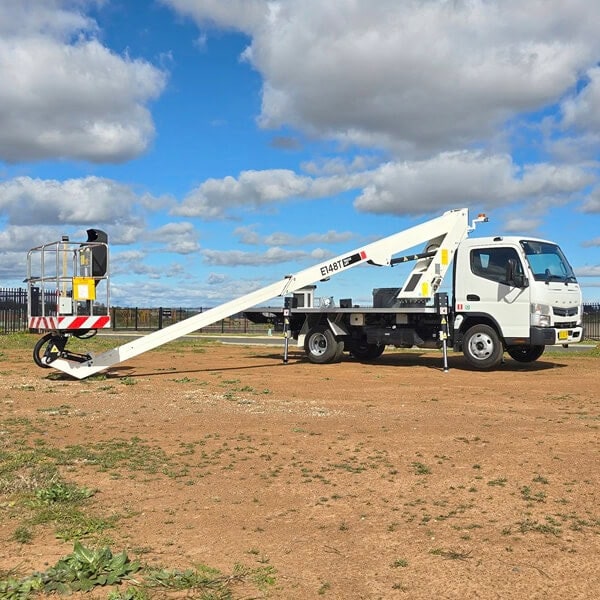

GSR E148T on Fuso 515 4×2 Car License Truck
The E148T is a simple, strong and reliable telescopic truck mounted cherry picker. A very versatile package for heavy duty applications. It is equipped with exceptional strength and rigidity in the aerial platform as well as simple and intuitive operation.
EWP Specifications
Manufacturer | GSR |
Model | E148T |
Working height | 13.7m |
Height (ground to bucket floor) | 11.7m |
Working radius | 8.9m |
Insulation | No |
Boom style | Telescopic |
Boom slew rotation | 450° Non Continuous |
Bucket rotation | 140° |
Bucket capacity SWL | 250kg |
Control type | Hyd. |
Bucket lift slide | No |
Wrap around bucket (swing Arm) | No |
Hydraulic tool port at bucket | No |
Flyboom (°) | No |
Auto stow | No |
Auto outrigger levelling | No |
Jib (material handler) | No |
Lifting winch | No |
Power lead to basket | No |
Truck Specifications
Make | Fuso |
Model | 515 |
Specifications | 4×2 |
HP | 150 |
Transmission | AMT Auto |
The E148T is a simple, strong and reliable telescopic truck mounted cherry picker. A very versatile package for heavy duty applications. It is equipped with exceptional strength and rigidity in the aerial platform as well as simple and intuitive operation.
This telescopic truck mounted boom lift weighs as little as 3,650 kg, has a 13.7m vertical reach, and 8.4 m horizontal
reach.
The E148T truck mounted lift is extremely versatile, and safe to accommodate 2 persons and tools with a maximum rated capacity of 250 kg. It is also equipped with hydraulic control levers that are robust and durable, allowing smooth full range operation—even at maximum outreach.
The E148T’s outrigger legs can be operated individually using the hydraulic controls for simple levelling on uneven surfaces. The legs are vertical, and remain within the width of the truck when set up.
Car Licence

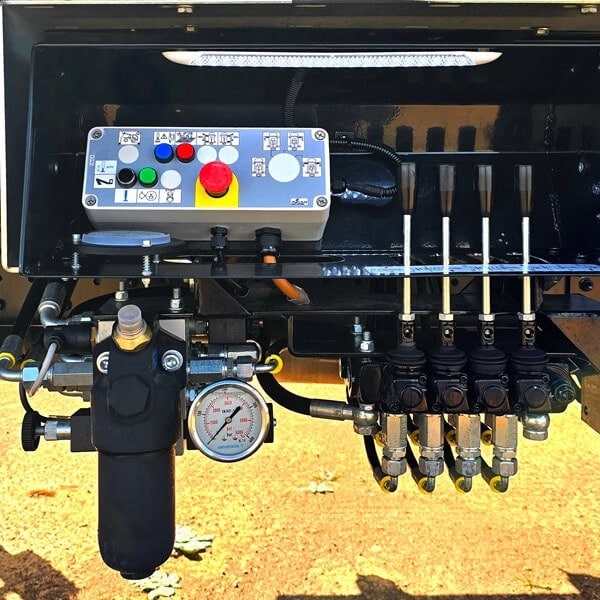

Simple Hydraulic Controls
Strong Boom Design
Vertical Legs
