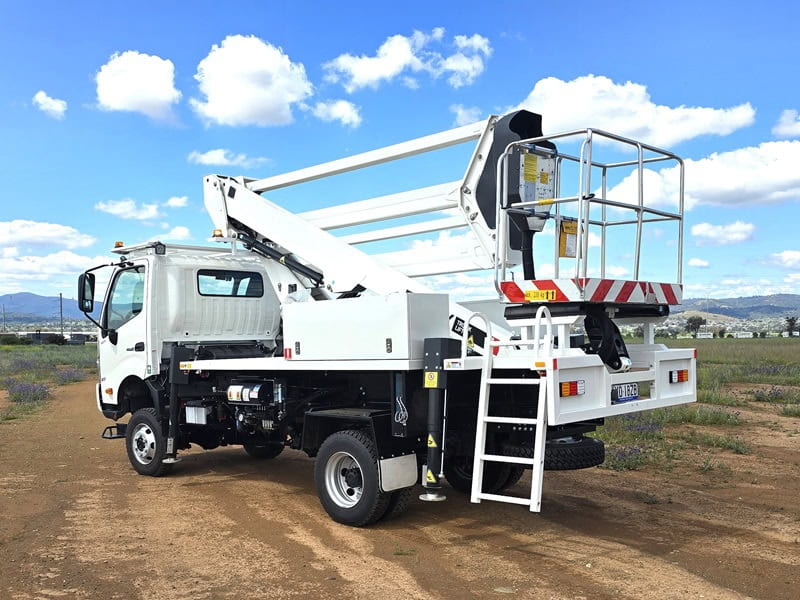

GSR E209PX on Hino 817 4×4 Truck
The E209PX is a super compact 20 m truck mounted lift. This versatile package is a favourite with tree trimming & trades industries. The compact boom is made up of a double articulating boom giving straight “Plumb line” movement making it great for working up a vertical face such as the side of a building. The top section is telescopic providing point and shoot functionality providing 9m outreach. With almost zero tail swing, it is well adapted to work roadside and in confined spaces.
EWP Specifications
| Manufacturer | GSR |
| Model | E209PX |
| Working height | 20.2m |
| Height(ground to bucket floor) | 18.2m |
| Working radius | 8.50m |
| Insulation | No |
| Boom style | Articulating/Telescopic |
| Boom slew rotation | 450° non continuous |
| Bucket rotation | 140° |
| Bucket capacity SWL | 220kg |
| Control type | Hyd. |
| Power lead to basket | No |
Truck Specifications
| Make | Hino |
| Model | 817 |
| Specifications | 4×4 |
| HP | 170 |
| Transmission | Manual |
The E209PX is a super compact 20 m truck mounted lift. This versatile package is a favourite with tree trimming & trades industries. The compact boom is made up of a double articulating boom giving straight “Plumb line” movement making it great for working up a vertical face such as the side of a building. The top section is telescopic providing point and shoot functionality providing 9m outreach. With almost zero tail swing, it is well adapted to work roadside and in confined spaces.
This unit weighs from as little as 4200kg, has a 20m working height, and 9m horizontal reach.
The E209PX truck mounted lift is extremely rigid, and safe to accommodate 2 persons and tools with a maximum rated capacity of 220 kg.

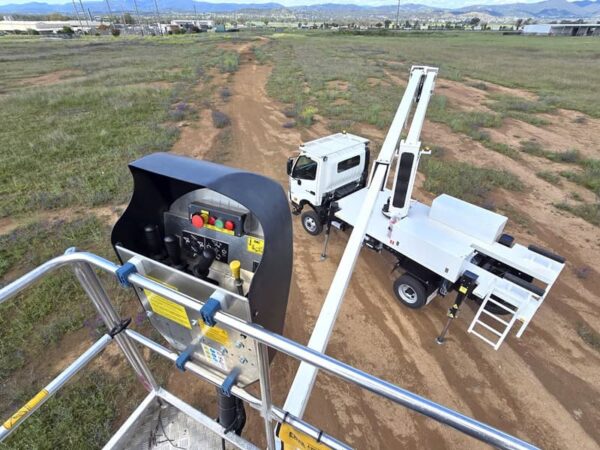

The heavy-duty hydraulic proportional multifunctional joysticks are housed within a fully protected area and provide the operator with exceptional smoothness and accuracy even at full height and outreach. Hoses and cables are placed within the booms, with internal tracking which is protected from debris by a set of self-cleaning brushes placed at each of the telescopic sections.

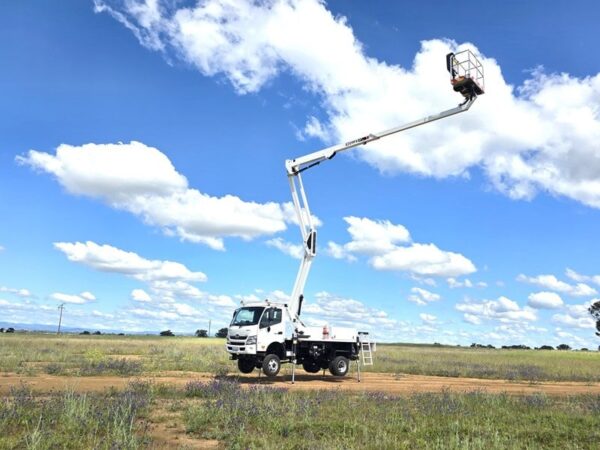

20m reach on a compact 4x4
Simple Hydraulic Controls providing super smooth operation
Vertical Legs offering massive correction
Easy boom to ground access
