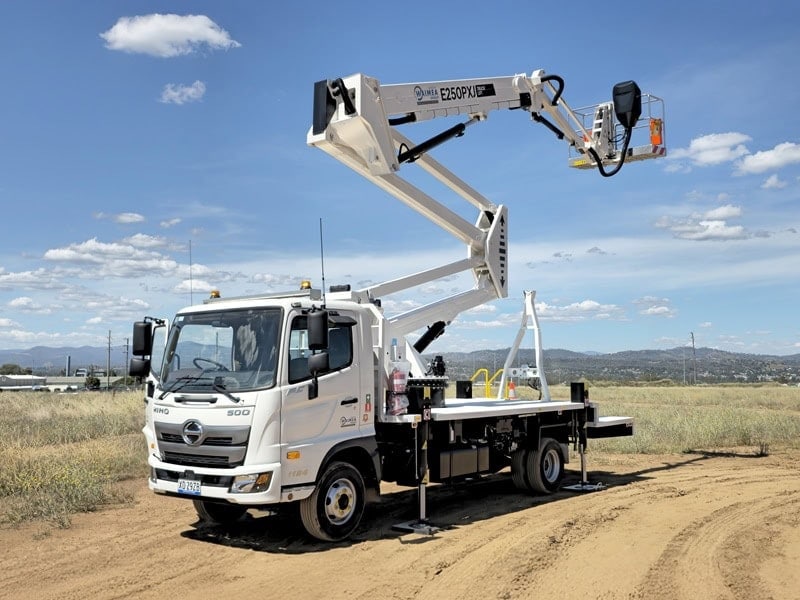

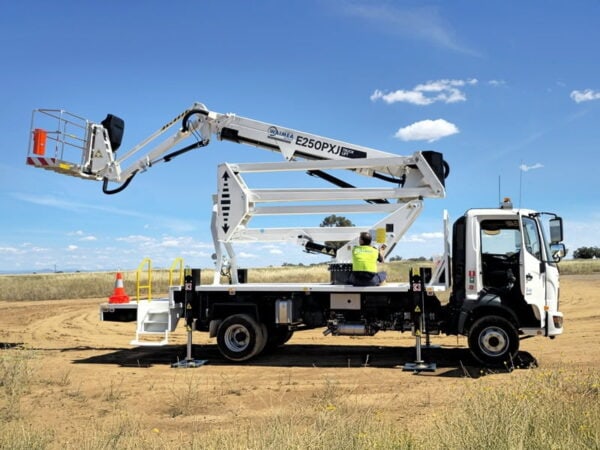

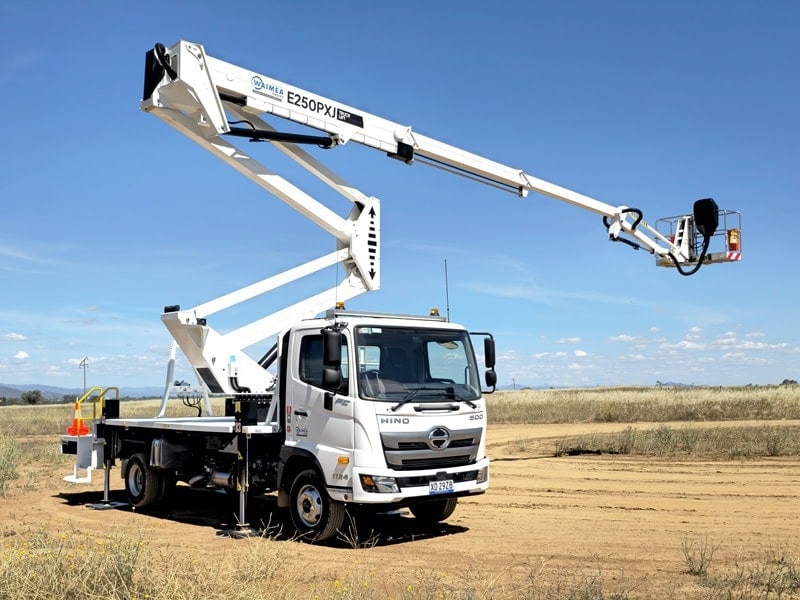

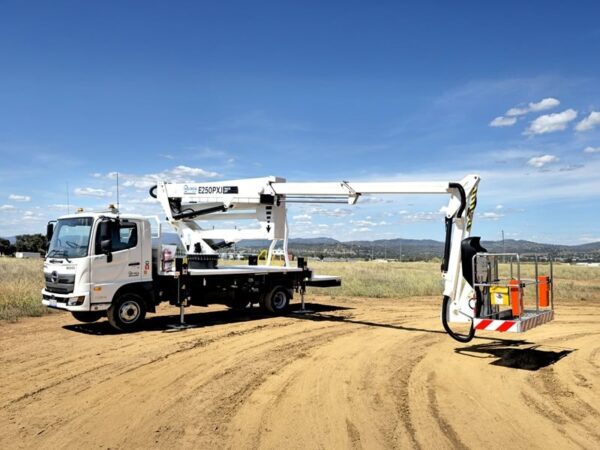

GSR E250PXJ on HINO FC1124 4×2
The GSR E250PXJ truck mounted lift is a versatile 25 m telescopic machine with Fly Jib. Mounted to FC1124 Hino 500 Cab Chassis with Automatic Transmission. An agile unit with great outreach.
EWP Specifications
| Manufacturer | GSR |
| Model | E250PXJ |

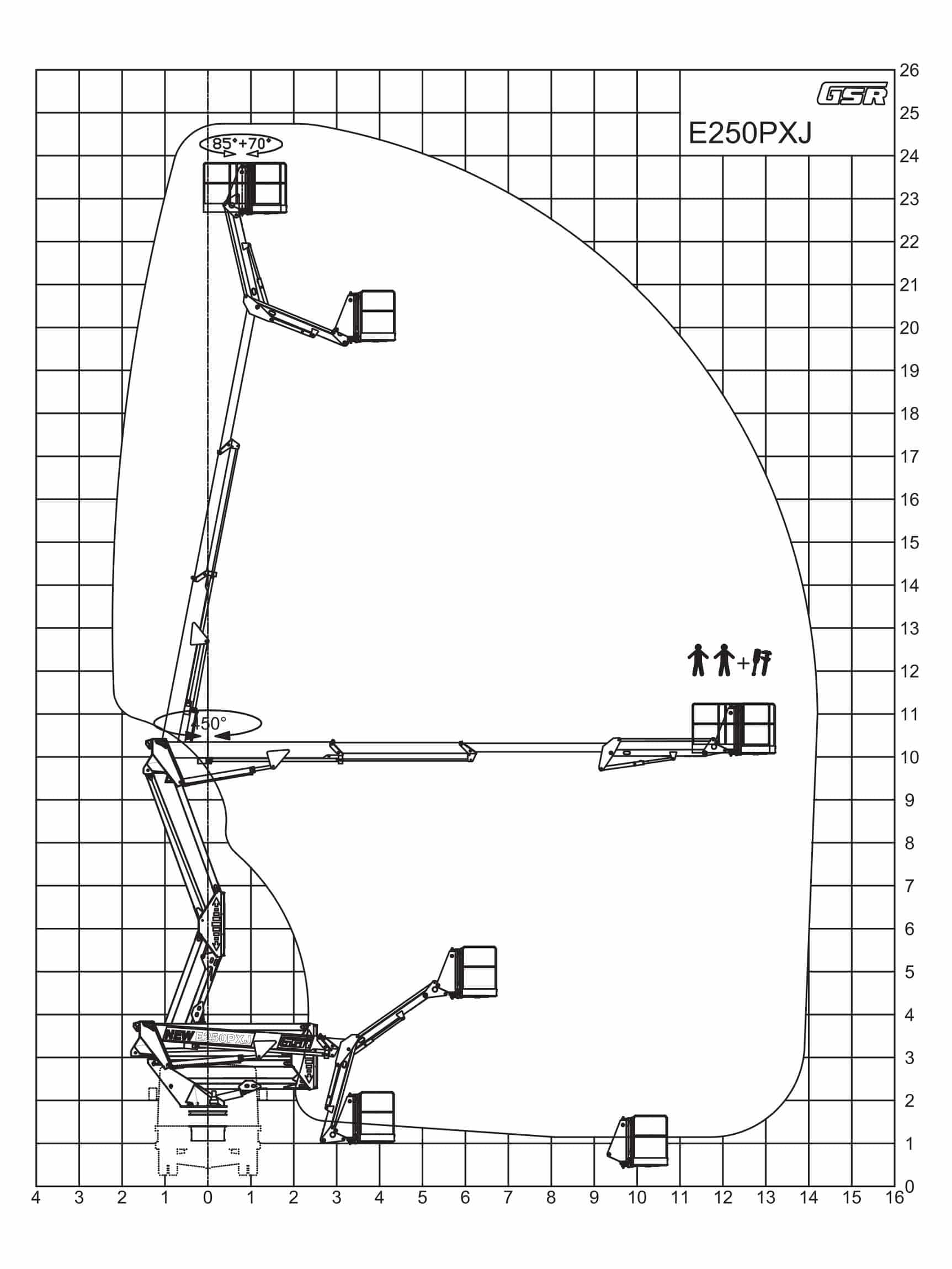

| Working height | 24.8m |
| Working radius | 14.0m |
| Insulation | No |
| Boom style | Articulating/Telescopic/Jib |
| Boom slew rotation | 450° |
| Bucket rotation | 155° |
| Bucket capacity SWL | 220kg |
| Bucket dimension (LxWxH) | |
| Control type | Hyd. |
| Bucket lift slide | No |
| Wrap around bucket (swing Arm) | No |
| Hydraulic tool port at bucket | No |
| Flyboom (°) | |
| Auto stow | No |
| Auto outrigger levelling | O |
| Jib (material handler) | No |
| Lifting winch | No |
Truck Specifications
| Make | Hino |
| Model | FC1124 |
| Specifications | 4×2 |
| HP | 240 |
| Transmission | AMT Auto |
The GSR E250PXJ truck mounted lift is a versatile 25 m telescopic machine with Fly Jib. Mounted to FC1124 Hino 500 Cab Chassis with Automatic Transmission. An agile unit with great outreach.
The GSR E250PXJ truck mounted lift is extremely rigid and safe to accommodate 2 persons and tools with a maximum rated capacity of 220kg.

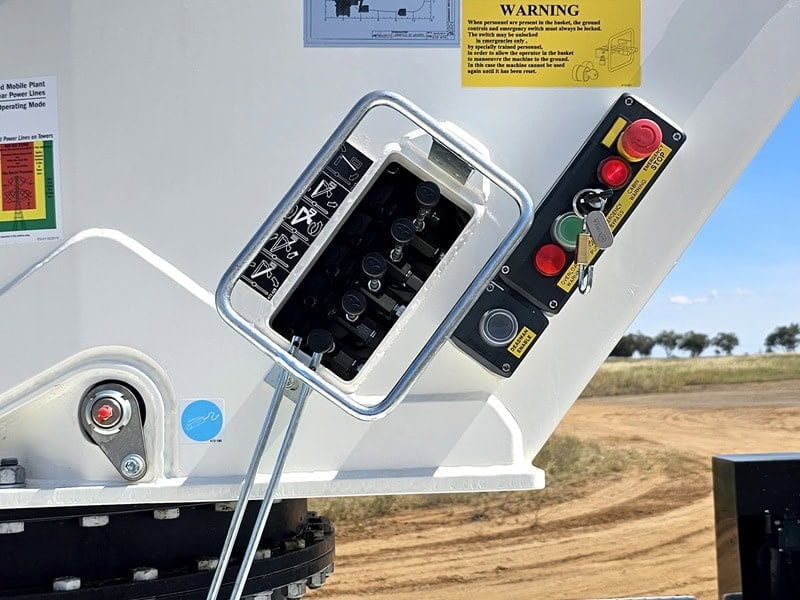

The heavy-duty hydraulic proportional multifunctional joysticks and housed within a fully protected area and provide the operator with exemptional smoothness and accuracy even at full height and outreach. Hoses and cables are placed within the boom with internal tracking which is protected from debris by a set of self-cleaning brushes placed at each of the telescopic sections.
