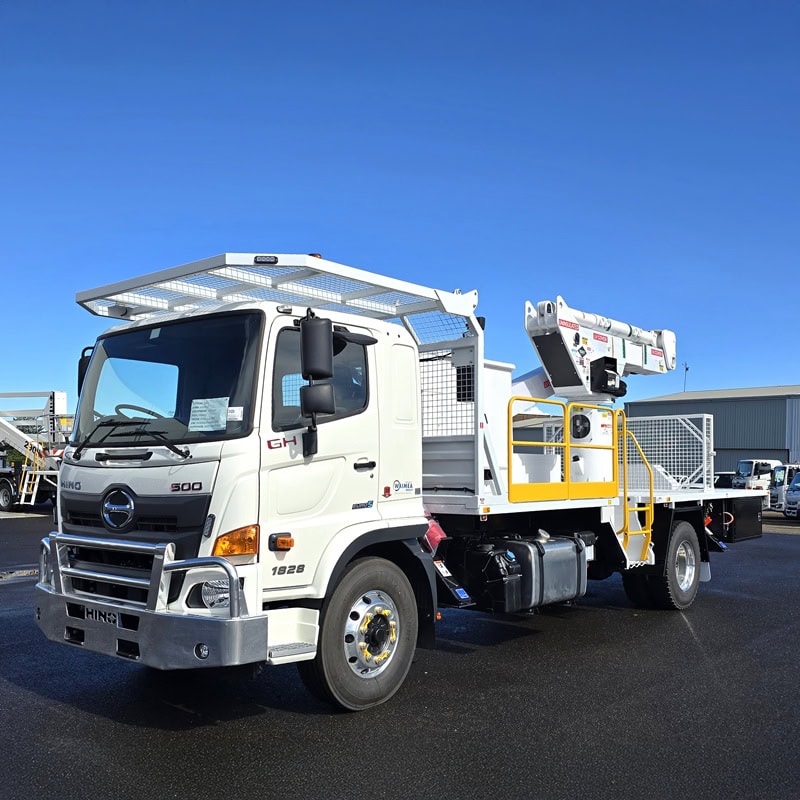

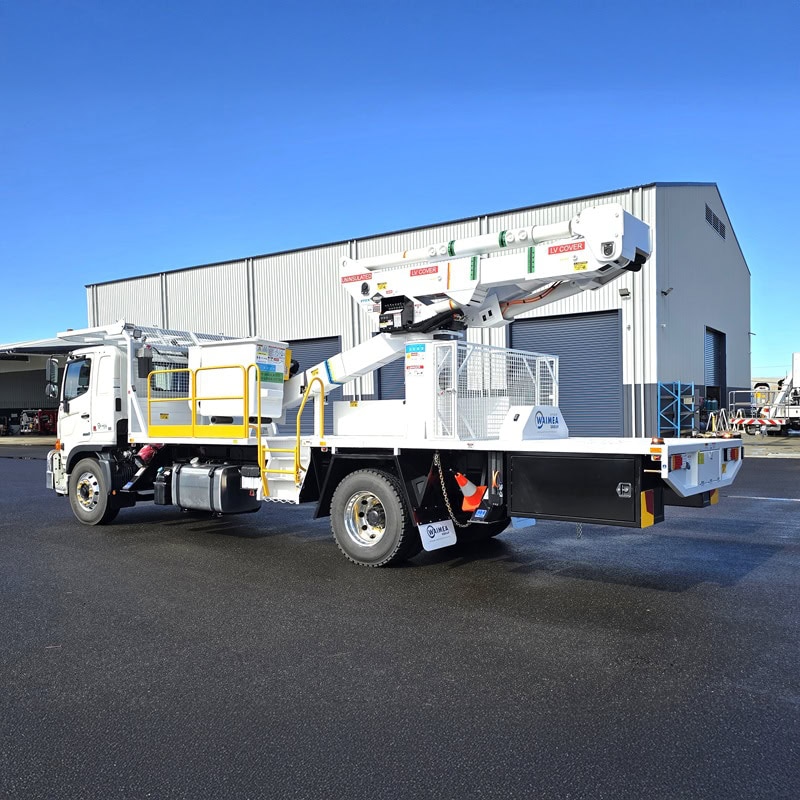

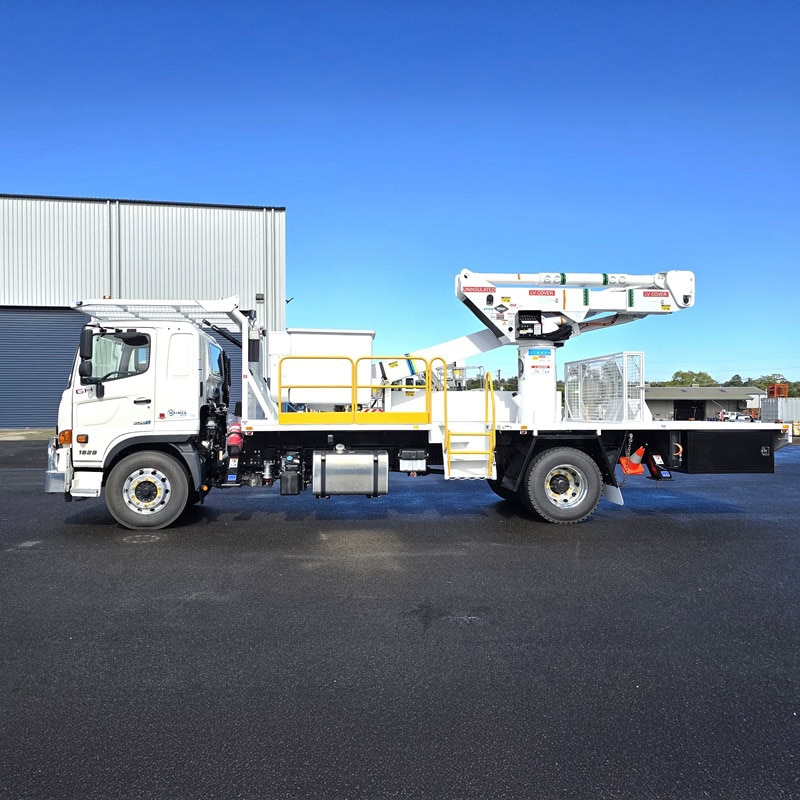

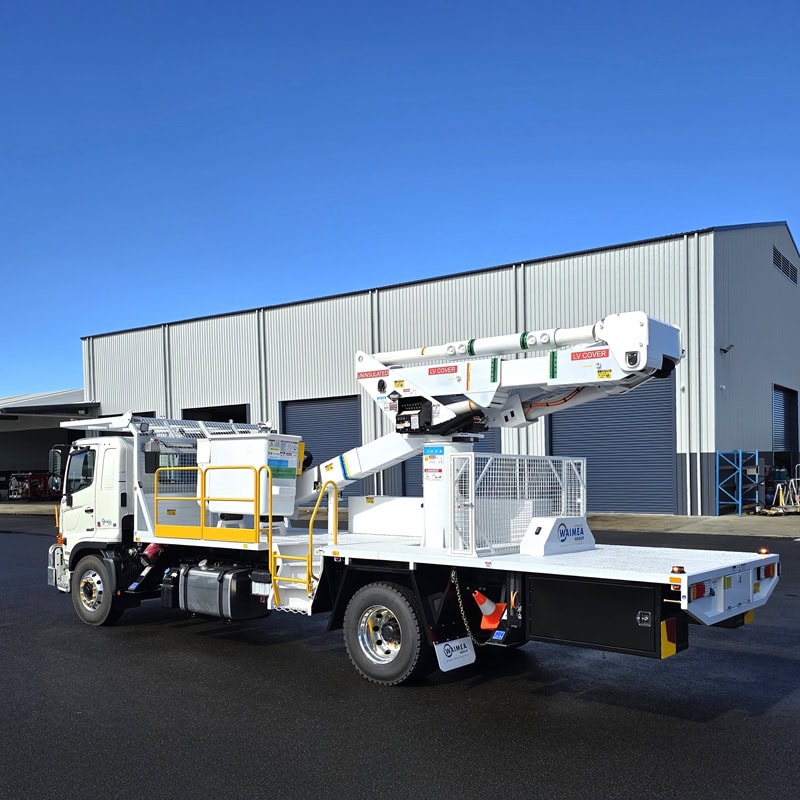

Versalift VST5000 on Hino GH1828 4×2

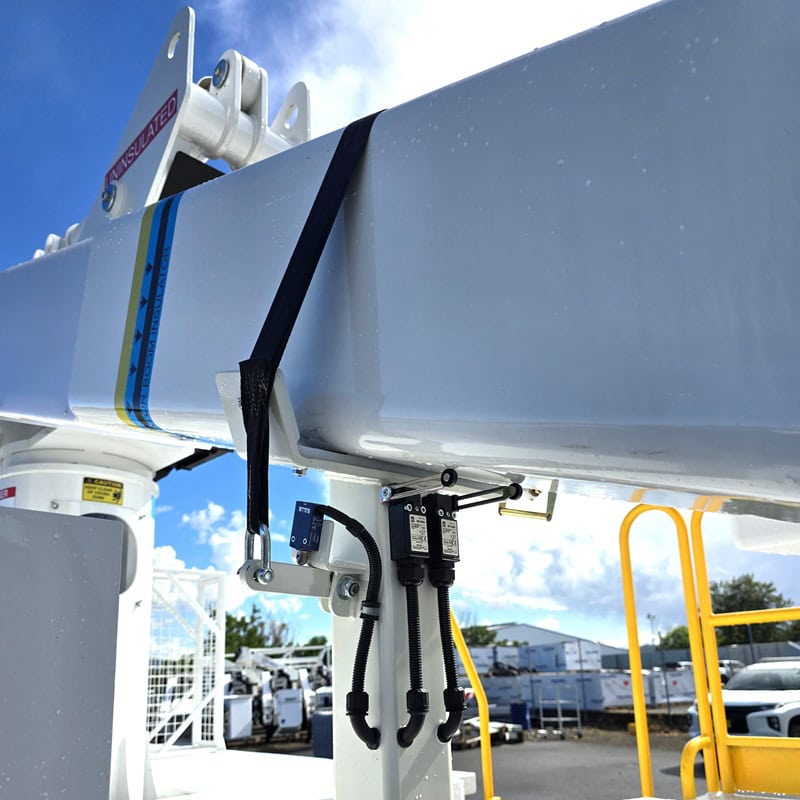

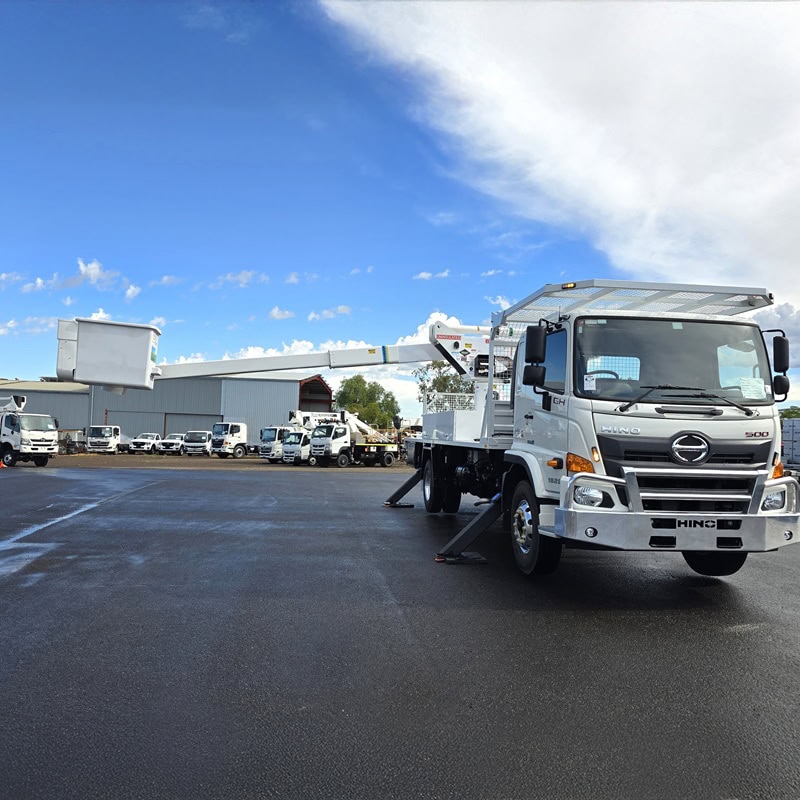

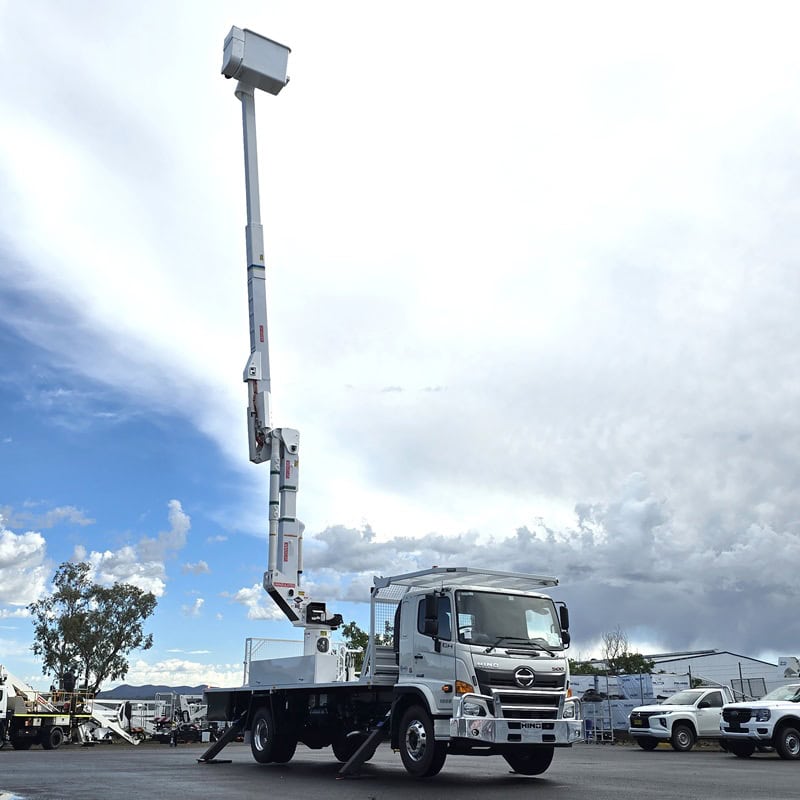

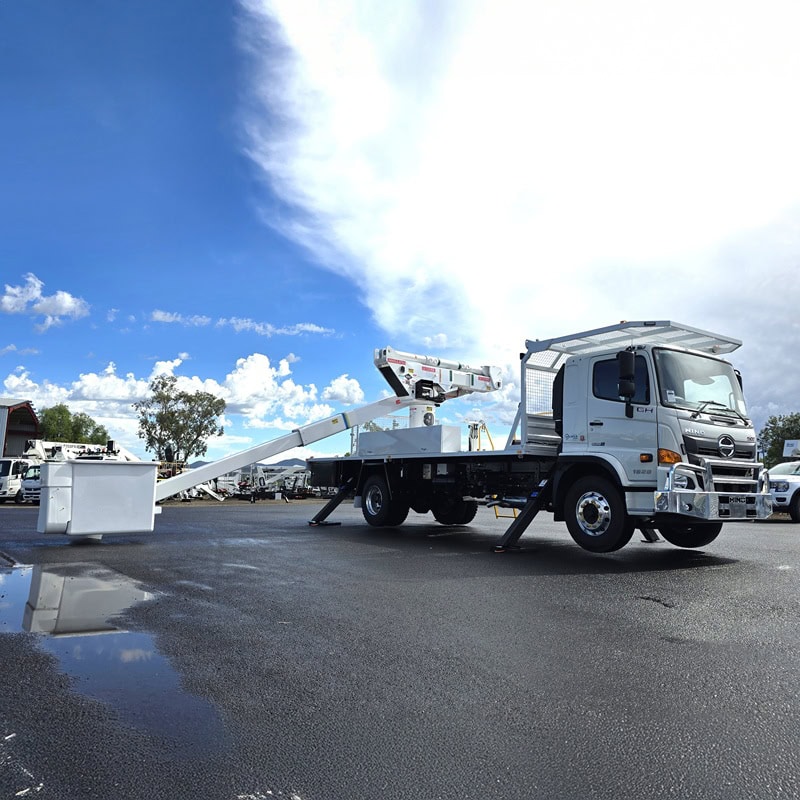

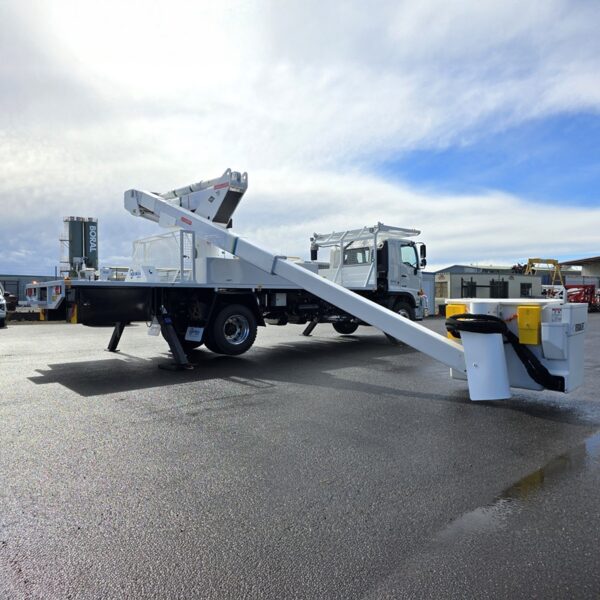

The Versalift VST5000 EWP offers 17.3m work height, 11.5m horizontal reach and 272kg bucket capacity on a fully insulated boom. It comes with four outriggers with interlock system, and uni-lever control for multi-function with one hand. The VST5000 boom offers point and shoot functionality along with ability to go up and over obstacles.
Available for dry hire, lease or purchase.
EWP Specifications
| Manufacturer | Versalift |
| Model | VST5000 |
| Working height | 17.5m |
| Working radius | 11.2m |
| Insulation | Insulated |
| Boom style | Articulating/Telescopic |
| Boom slew rotation | Continuous |
| Bucket rotation | Yes |
| Bucket capacity SWL | 272kg |
| Bucket dimension (LxWxH) | 1070x610x1250 |
| Control type | Hyd. |
| Bucket lift slide | No |
| Wrap around bucket (swing Arm) | NA |
| Hydraulic tool port at bucket | Yes |
| Flyboom (°) | NA |
| Auto stow | NA |
| Auto outrigger levelling | NA |
| Jib (material handler) | NA |
| Lifting winch | NA |
Truck Specifications
| Make | Hino |
| Model | GH1828 |
| Specifications | 4×2 |
| HP | 280 |
| Transmission | Auto |
The Versalift VST5000 EWP offers 17.3m work height, 11.5m horizontal reach and 272kg bucket capacity on a fully insulated boom. It comes with four outriggers with interlock system, and uni-lever control for multi-function with one hand. The VST5000 boom offers point and shoot functionality along with ability to go up and over obstacles.

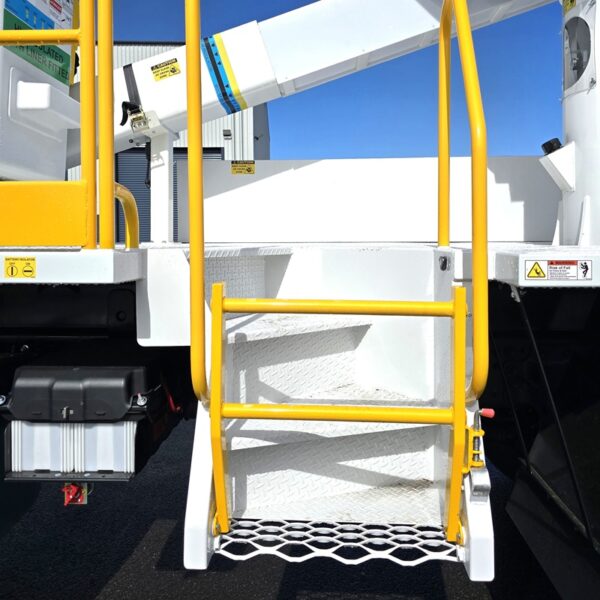

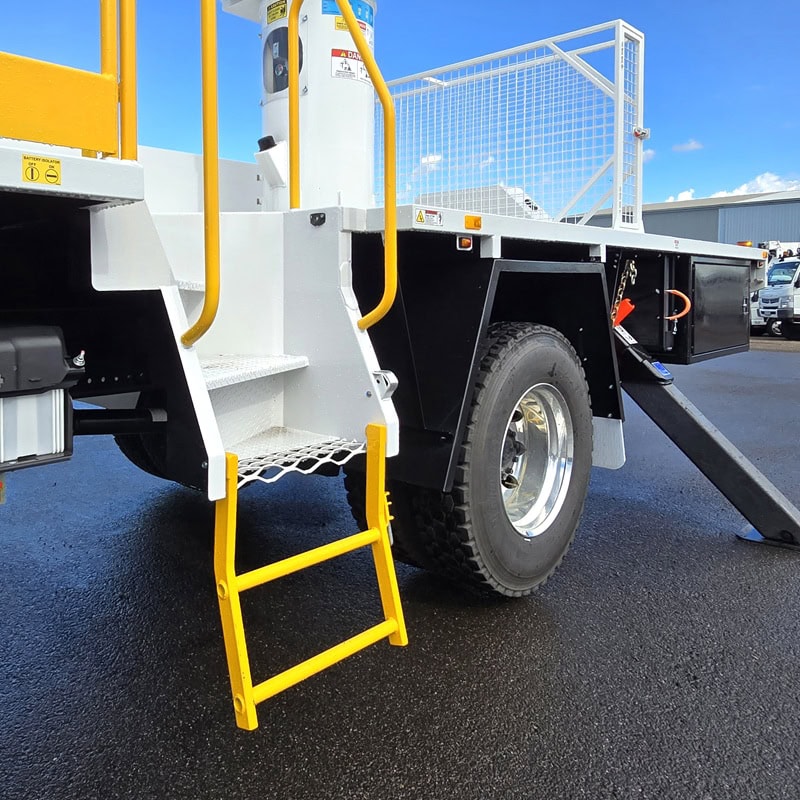

There's a hydraulic tool port at the bucket and the bucket can easily be tilted for cleaning and rescue. The entire truck design is focused on highly efficient and safe use of the boom, with easy deck access and safety handrails access to the bucket. Build options include sign and cone holders, slide-out vice and a range for toolboxes to choose from.

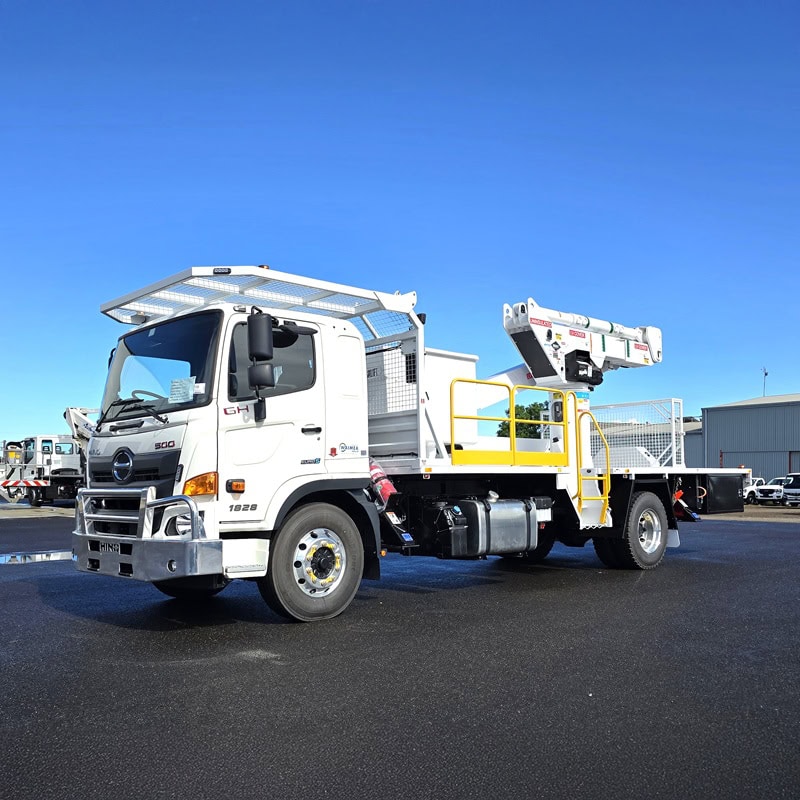

The Hino 500 Series comes with a automatic transmission and provides a tight turning circle for a nimble unit around town, and a pleasure to drive on the open road.
